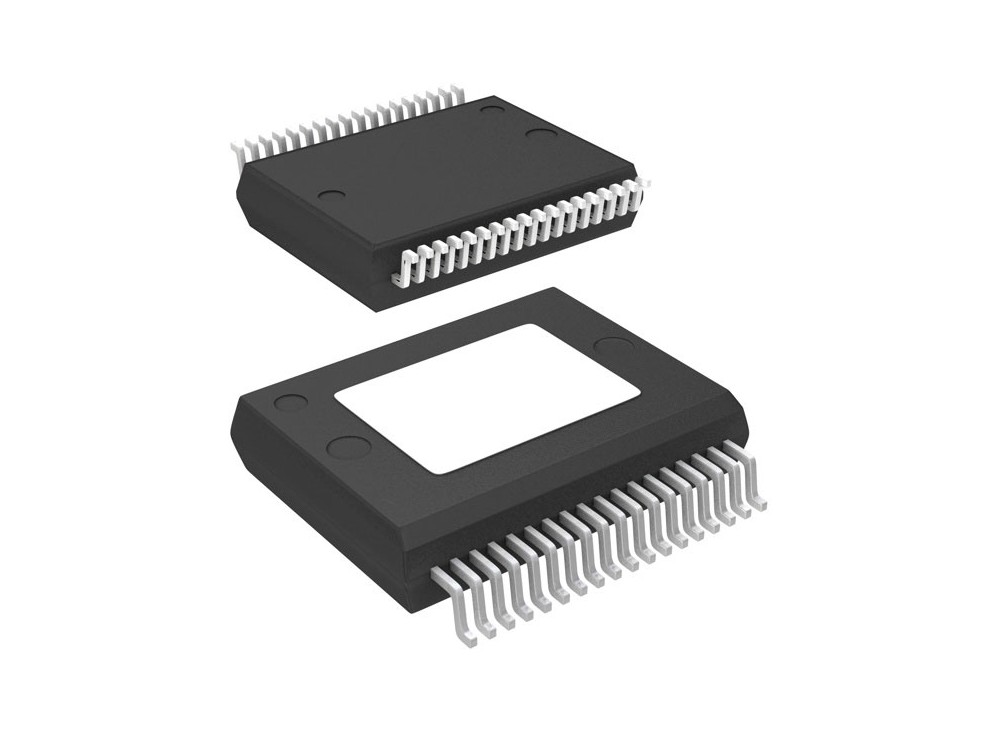

تراشه آمپلی فایر TDA7498E پکیج PowerSSO-36

Introduction

The TDA7498E is a dual BTL class-D audio amplifier with single power supply designed for home systems and active speaker applications. It comes in a 36-pin PowerSSO package with exposed pad up (EPU) to facilitate mounting a separate heatsink.

Specification

160-W + 160-W output power at THD = 10% with RL = 4 Ω and VCC = 36 V
1 x 220 W output power mono parallel BTL at THD = 10% with RL = 3 Ω and VCC = 36 V
Wide-range single-supply operation (14 – 36 V)
High efficiency (η = 85%)
Parallel BTL function using the MODE pin
Four selectable, fixed gain settings of nominally 23.8 dB, 29.8 dB, 33.3 dB and 35.8 dB
Differential inputs minimize common-mode noise
Standby and mute features
Smart protection
Thermal overload protection
Small offset less than 20 mV
