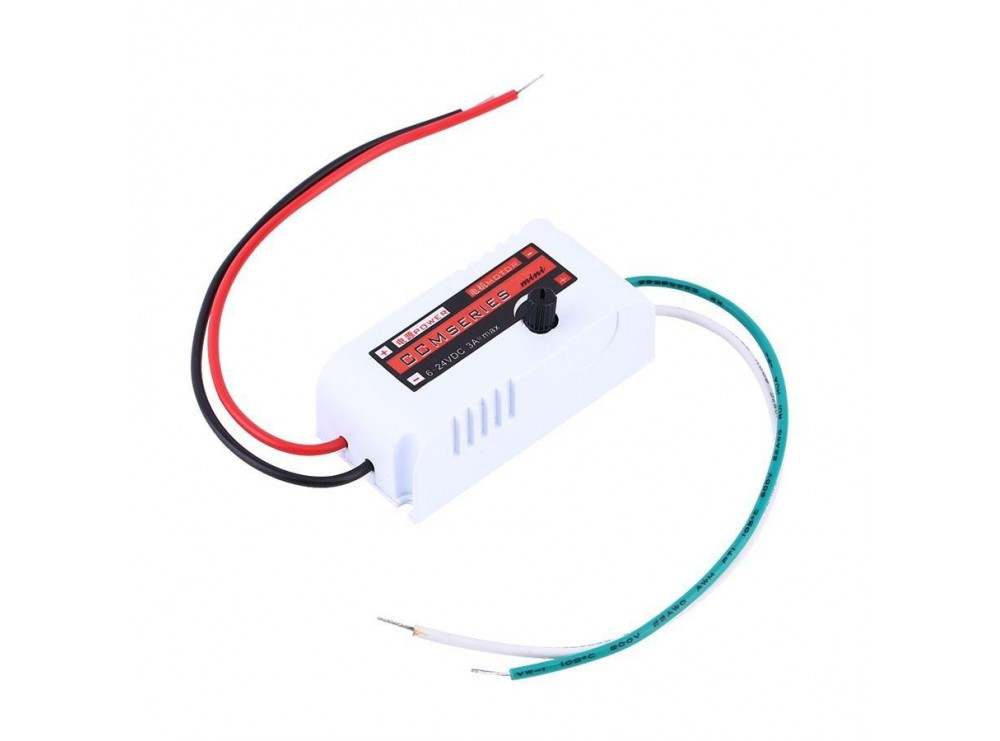

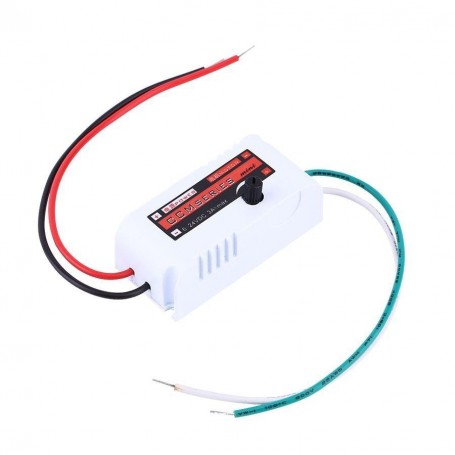

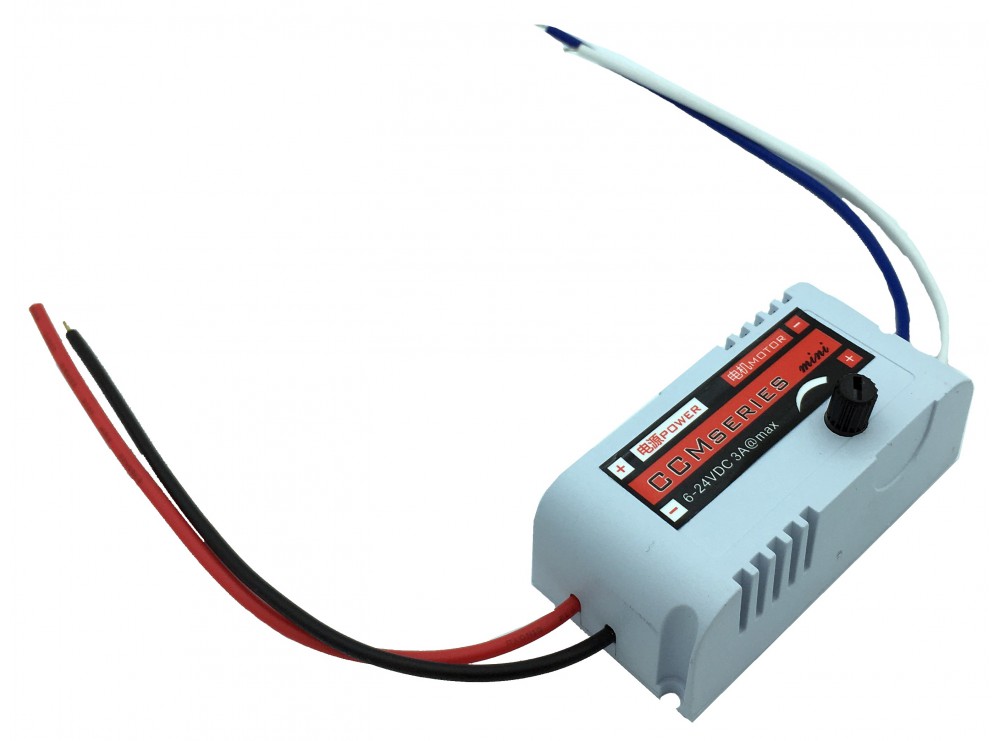

ماژول PWM ژنراتور تک کاناله 3A مارک CCMseries

معرفی

ماژول PWM ژنراتور CCMseries توانایی ایجاد موج مربعی با فرکانس 21KHz و دامنه 6 تا 24 ولت با حداکثر جریان خروجی 3A را دارد. همچنین دارای یک ولوم برای تغییر دیوتی سایکل می باشد که این ماژول را برای کاربردهایی مثل کنترل دور موتورهای DC به بهترین گزینه تبدیل می کند. مقدار دیوتی سایکل در محدوده 5 تا 100 درصد قابل تغییر می باشد.

Introduction

Description Overview DC Motor Speed Controller allows controlling speed of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 5%-100%. The motor speed controller can provide a continuous current of 3A to your DC motor or other DC load Important Notes An appropriately rated fuse (rated a little higher than the maximum current you expect to draw) is recommended to ensure safe operation. The controller is NOT reverse-polarity protected and will be damaged if it connects the supply voltage with the wrong polarity. Double-check all connections before applying power and always turn off the power supply before making any wiring changes.
Module with an integrated rotary potentiometer for speed control of a DC motor, through the completion of the PWM signal. Works with engines from 6 into 24 in, capacity up to 72 In (consumption current up to 3 A).
The output can not be short-circuited, or easily burn speed control board

Specification

Input voltage: DC 6V – 24V
Power: Max. 80W
Current: 3A continuous current
Frequency: 21KHz
PWM pulse width speed range: 5 – 100 percent
Item Weight:25g

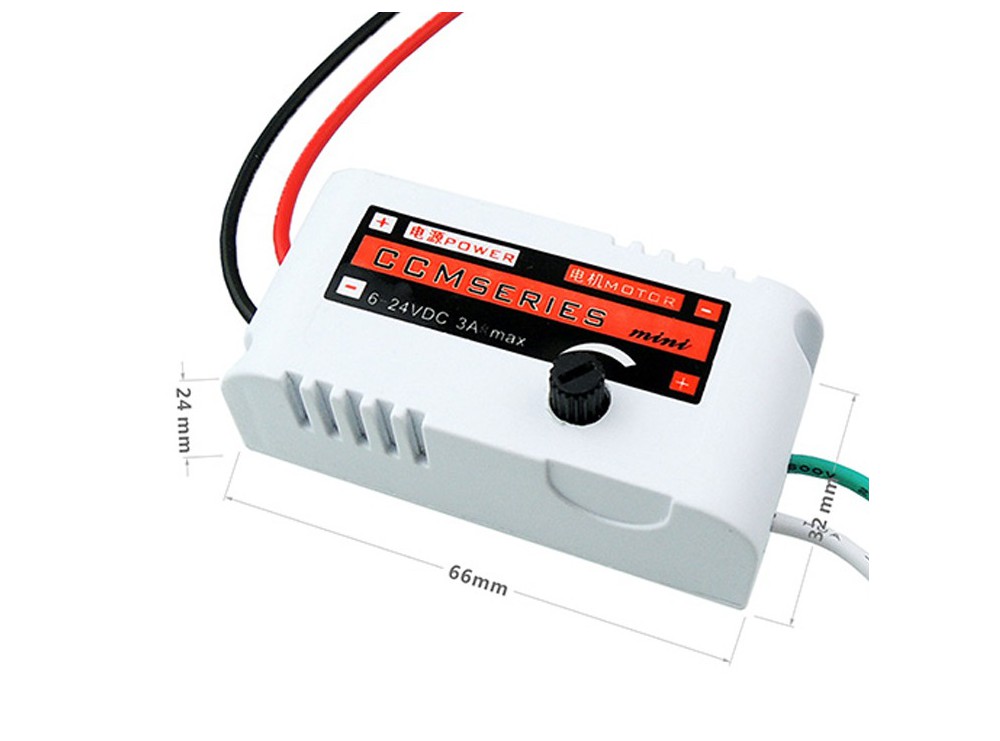

Product Size(L x W x H): 6.7 x 3.2 x 2.3 cm / 2.63 x 1.26 x 0.90 inches
Small DC motor speed controller, white plastic shell, refined and efficient
Small size, large torque, adjust the motor speed and stability
