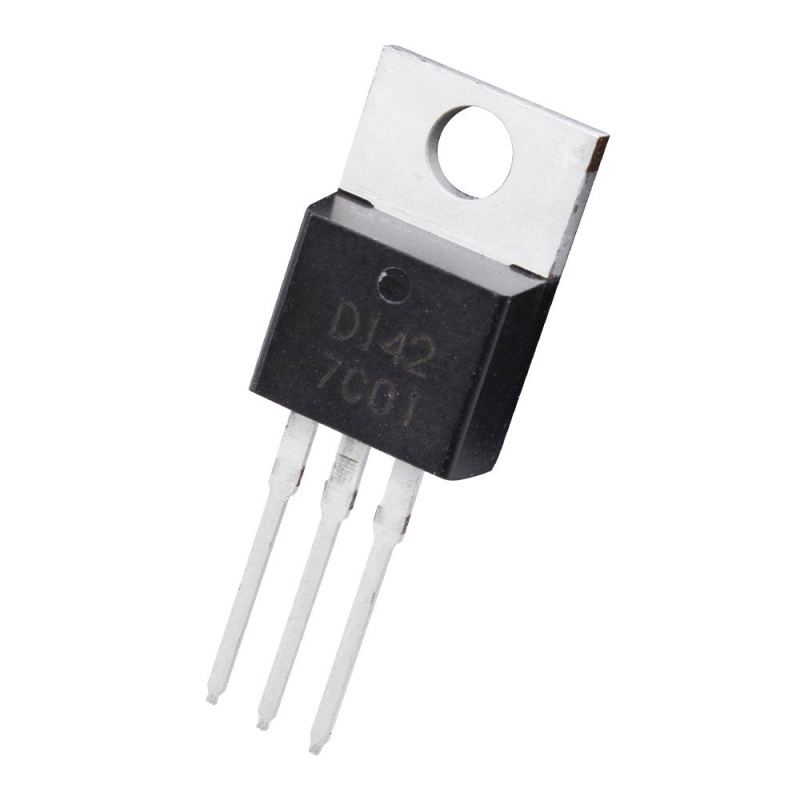

مجموعه 8 عددی ترانزیستور 2SD142 نوع NPN تایوانی پکیج TO-220

Specification

Type Designator: 2SD142
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 15 W
Maximum Collector-Base Voltage |Vcb|: 40 V
Maximum Collector-Emitter Voltage |Vce|: 20 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 3 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 0.4 MHz
Forward Current Transfer Ratio (hFE), MIN: 30
