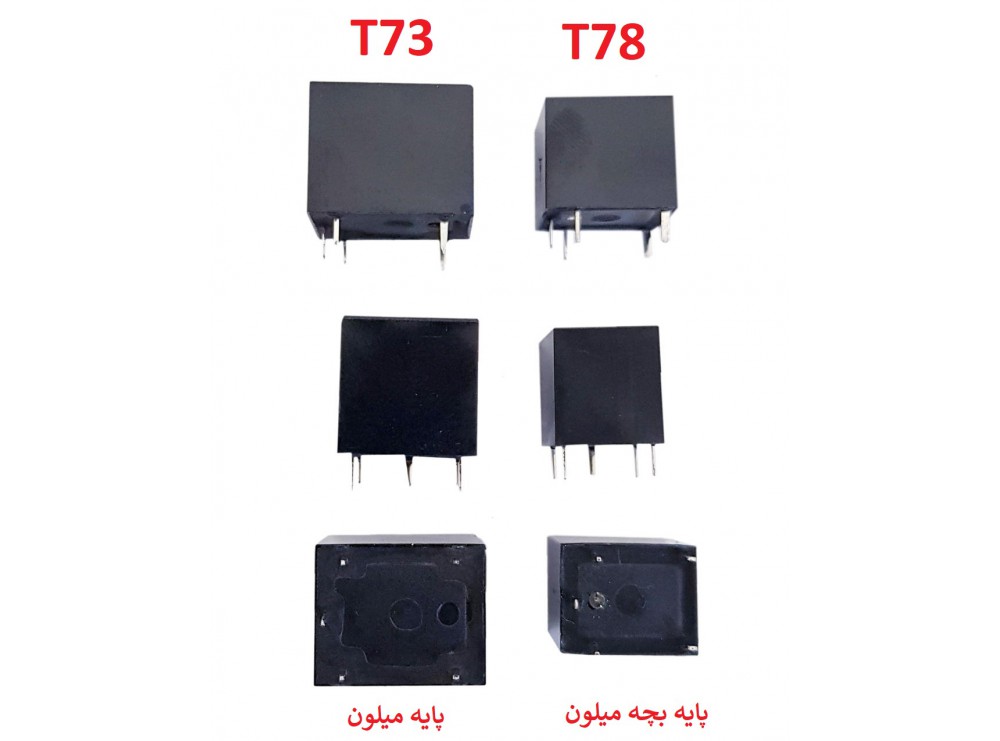

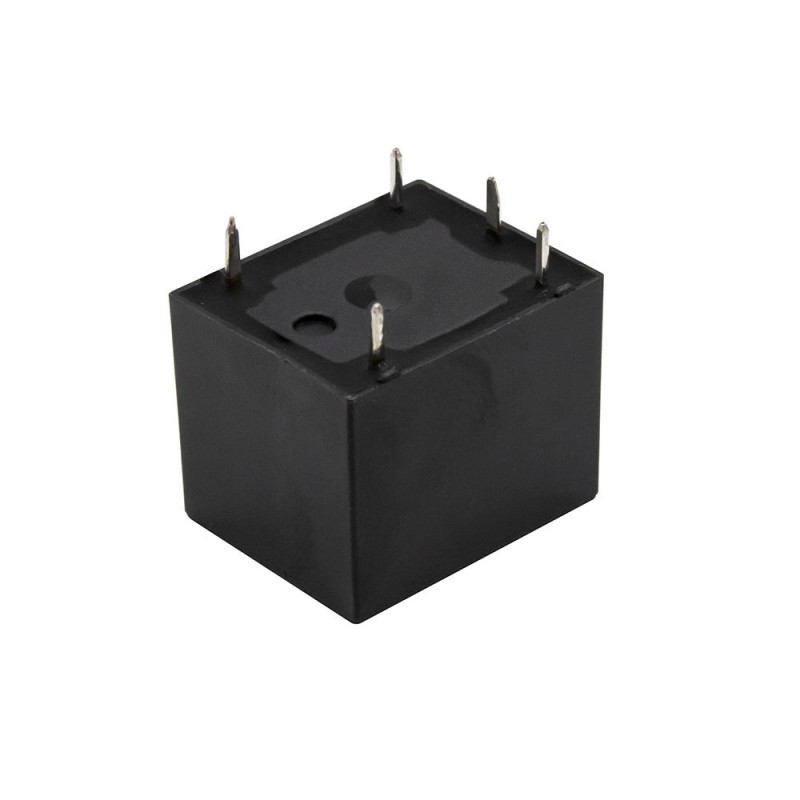

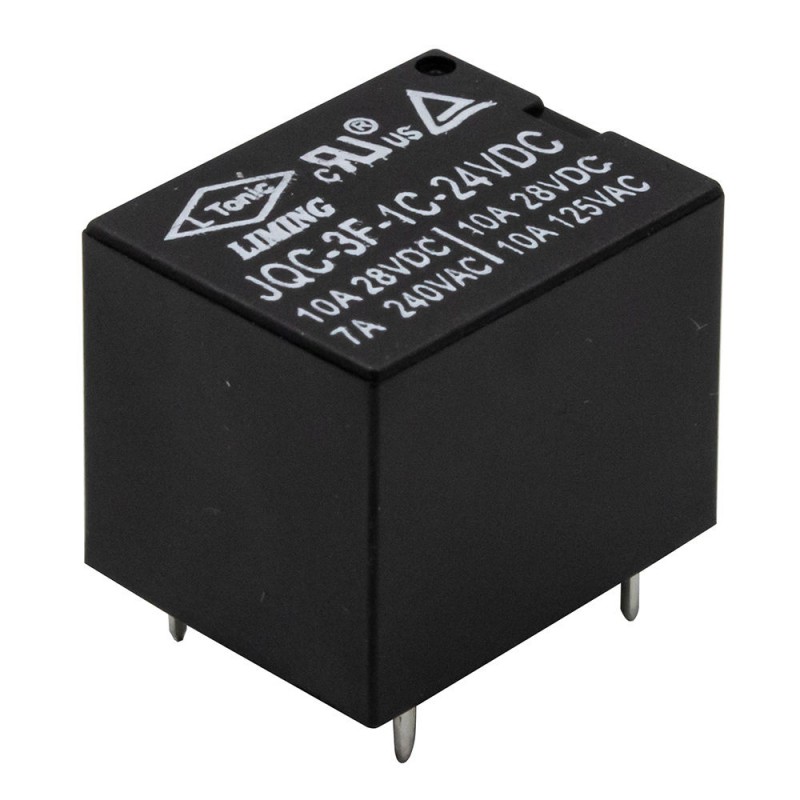

مجموعه 8 عددی رله 24V پایه میلون T73 مارک LIMING کد JQC-3F-1C-24VDC

Specification

Outline Dimension(L×W×H): 19×15.5×15.5
Dielectric Strengh Between Open Contact: 750VAC
Contact Form: 1A,1B,1C
Between Coil and Contact: 1500VAC
Contact Resistance: 100 mΩ
Coil Voltage: 5VDC ~ 48VDC
Electrical: 10^5
Mechanical: 10^7
Pick-up Voltage: ≤75%
Temperature Range: -40~ +70℃
Release Voltage: ≥10%
Coil Power(W): 0.36
Mounting Form: PCB Terminal
Contact Rating: 10A/15A  120VAC
7A  240VAC
10A 28VDC
Weight: 10g
Insulation Resistance: 100 MΩ
Safty Approval: UL
