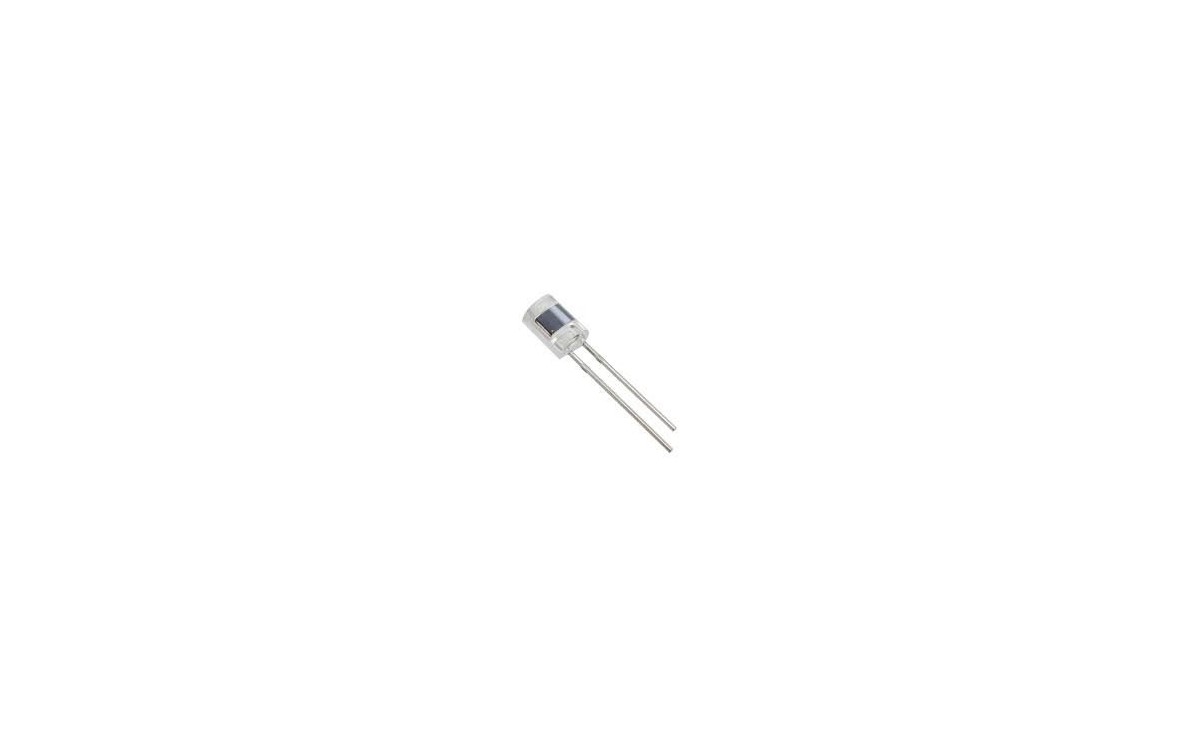

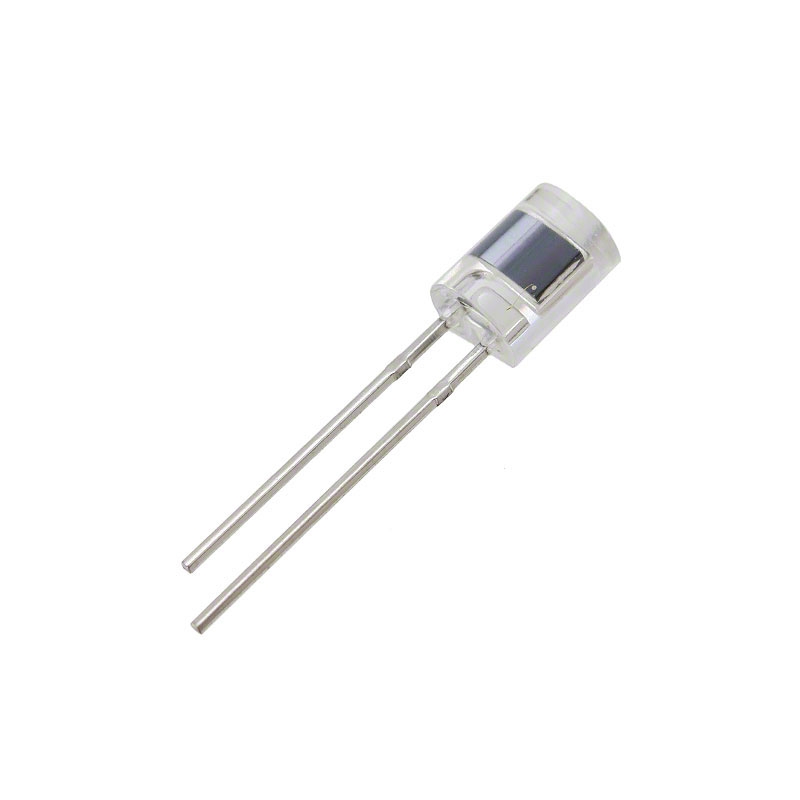

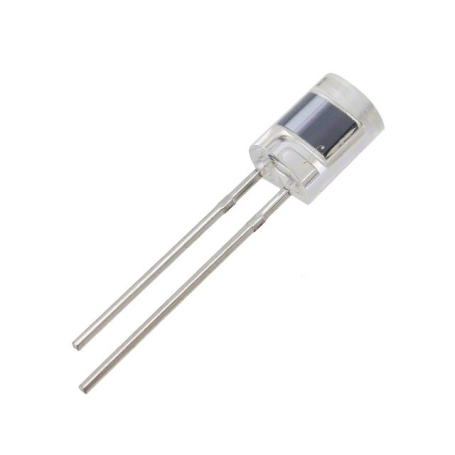

مجموعه 9 عددی گیرنده لیزر PD438C مارک EVERLIGHT

Introduction

PD438C is a high speed and sensitive PIN photodiode in a cylindrical side
view plastic package. Due to its water clear epoxy the device is sensitive to
visible and infrared radiation.
Fast response times
High photo sensitivity
Small junction capacitance
Pb free
The product itself will remain within RoHS compliant version.

Specification

Manufacturer: Everlight
Product Category: Photodiodes
Product: PIN Photodiodes
Package / Case: Side Looker
Mounting Style: Through Hole
Peak Wavelength: 940 nm
Dark Current: 5 nA
Vr – Reverse Voltage: 32 V
Rise Time: 50 ns
Fall Time: 50 ns
Half Intensity Angle Degrees:-
Minimum Operating Temperature: – 25 C
Maximum Operating Temperature: + 85 C
Brand: Everlight
Height: 6.6 mm
Length: 4.8 mm
Packaging: Bulk
Pd – Power Dissipation: 150 mW
Photocurrent: 18 uA
Product Type: Photodiodes


.
