مجموعه 11 عددی ولوم 50K اهم مدل VB16L43 دارای هولدر

Specification

model : VB16L43
Nominal Total Resistance : 50KΩ
Total Resistance Tolerance : Within ±10％ of the nominal total resistance
Insulation Resistance : 100MΩ at DC500V
Dielectric Strength : AC500V for 1 minute
Total Rotational Angle : 260±5°
Rotational Torque : 2 to 20 mN・m
Mounting style : panel mount type
Operating Temperature Range : -10 to 85℃
Rated Power : 0.1W – 0.05W
Maximum Operating Voltage in AC mode : 200V – 160V
Maximum Operating Voltage in DC mode : 30V – 50V

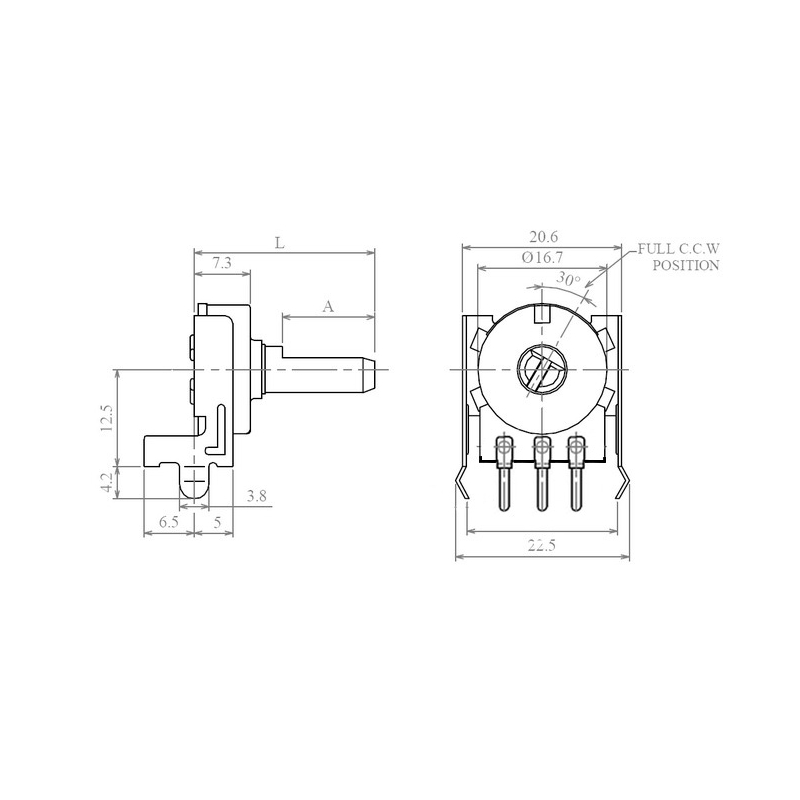

L: 28.5mm
A: 12mm
