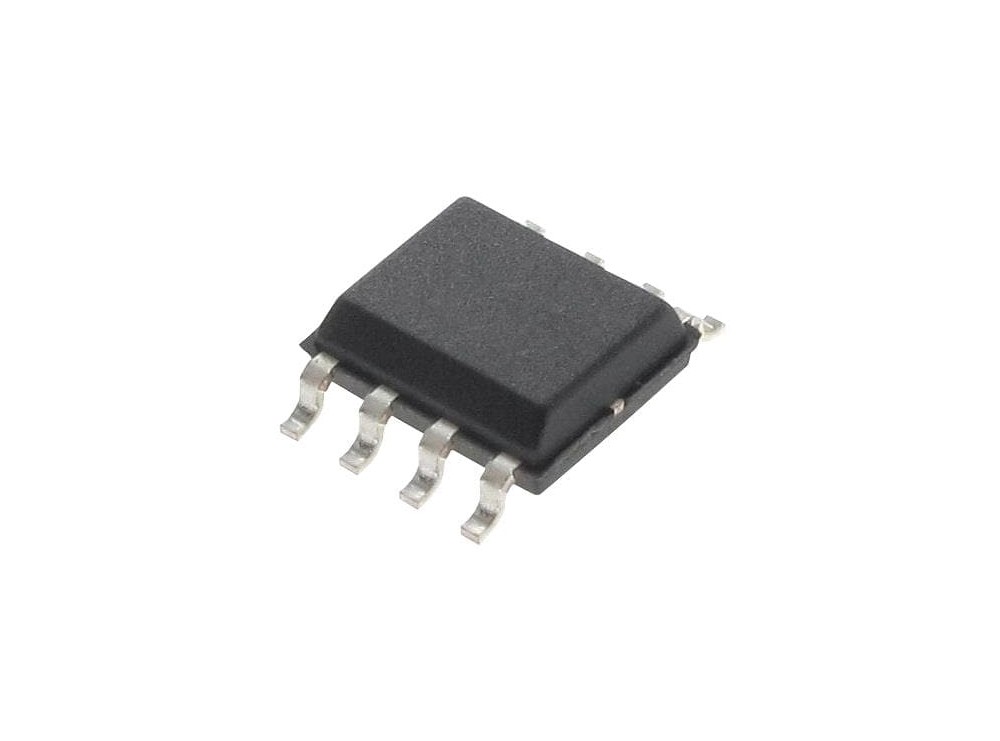

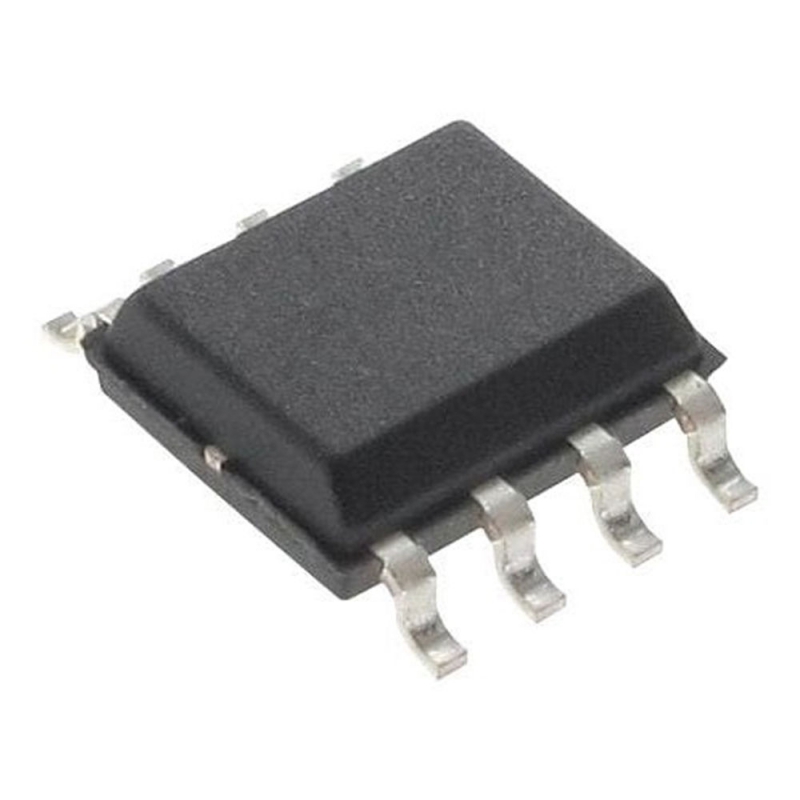

مجموعه 14 عددی تراشه حافظه AT24C64 پکیج SO-8

Specification

Product Category: EEPROM
Mounting Style: SMD/SMT
Package / Case: SOIC-8
Memory Size: 64 kbit
Interface Type: Serial, 2-Wire, I2C
Organization: 8 k x 8
Data Retention: 100 Year
Maximum Clock Frequency: 0.4 MHz
Supply Current – Max: 2 mA
Operating Supply Voltage: 2.5 V, 3.3 V, 5 V
Maximum Operating Temperature: + 85 C
Series: CAT24C64
Packaging: Reel
Access Time: 900 ns
Height: 1.5 mm (Max)
Length: 5 mm (Max)
Minimum Operating Temperature: – 40 C
Operating Supply Current: 2 mA
Supply Voltage – Max: 5.5 V
Supply Voltage – Min: 1.8 V
Width: 4 mm (Max)
