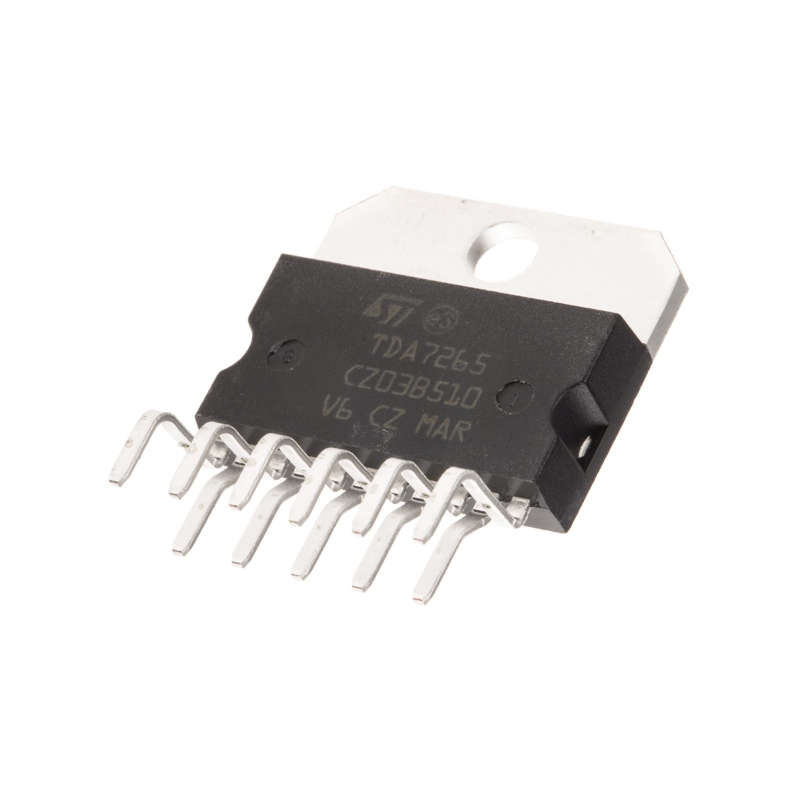

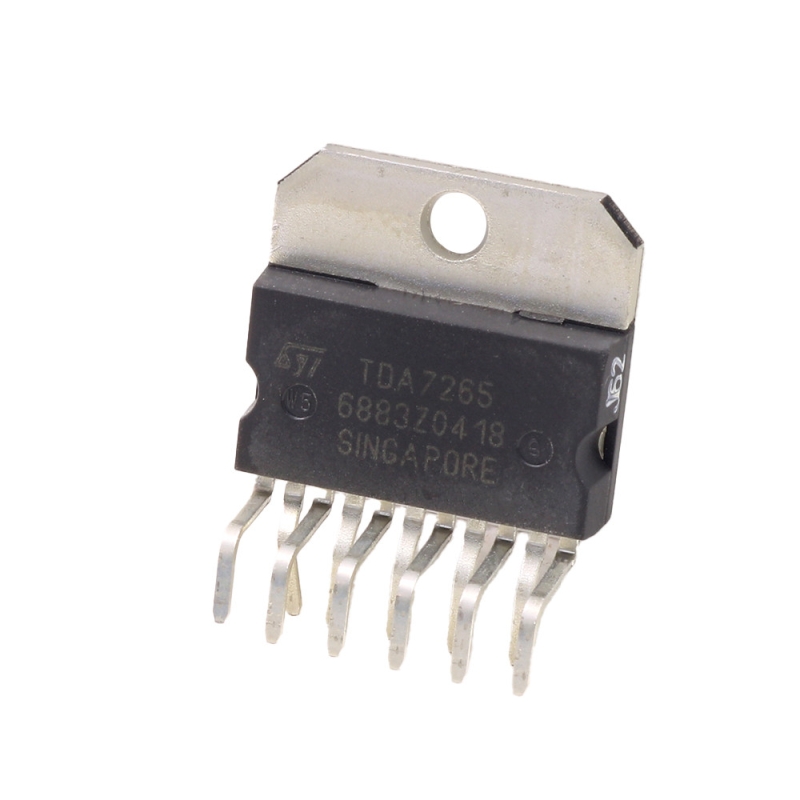

مجموعه 2 عددی تراشه آمپلی فایر TDA7265 مارک ST

Specification

Manufacturer: STMicroelectronics
Product Category: Audio Amplifiers
Class: Class-AB
Output Power: 25 W
THD plus Noise: 0.02 %
Package/Case: Multiwatt-11
Audio – Load Impedance: 8 Ohms
Supply Voltage – Min: 5 V
Supply Voltage – Max: 25 V
Minimum Operating Temperature: – 20 C
Maximum Operating Temperature: + 85 C
Mounting Style: Through Hole
Series: TDA7265
Brand: STMicroelectronics
Description/Function: Speaker
Dual Supply Voltage: +/- 9 V, +/- 12 V, +/- 15 V, +/- 18 V, +/- 24 V
Gain: 80 dB
Ib – Input Bias Current: 500 nA
Maximum Dual Supply Voltage: +/- 25 V
Minimum Dual Supply Voltage: +/- 5 V
Number of Channels: 2 Channel
Operating Supply Current: 4.5 A
Operating Supply Voltage: 25 V
Output Signal Type: Single
Pd – Power Dissipation: 30 W
Product: Audio Amplifiers
Product Type: Audio Amplifiers
PSRR – Power Supply Rejection Ratio: 60 dB
Subcategory: Audio ICs
Type: 2-Channel Stereo
Vos – Input Offset Voltage: 20 mV
