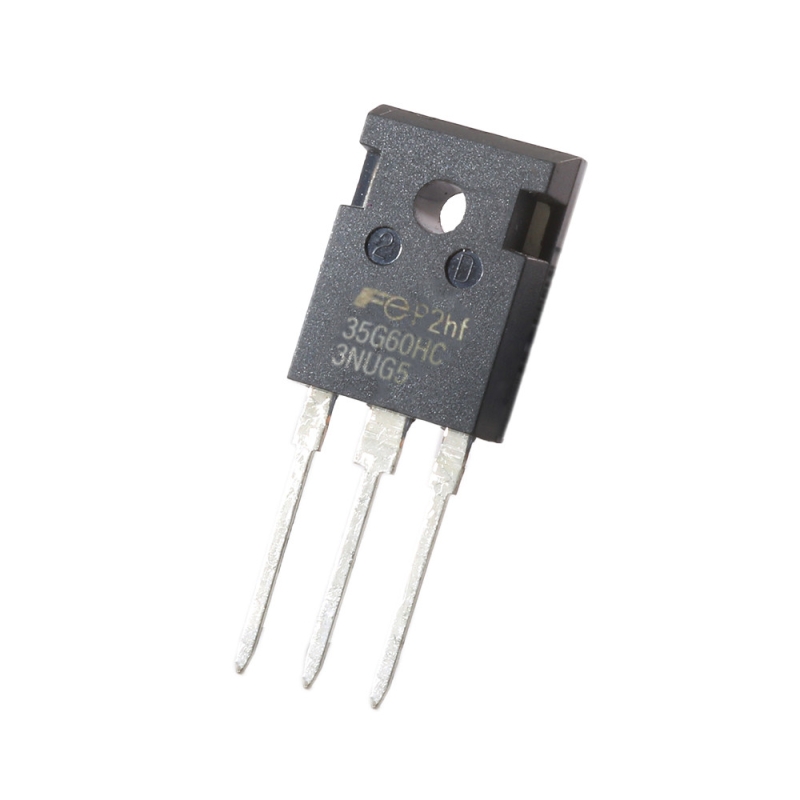

ترانزیستور FGW35N60HD IGBT ژاپنی مارک FUJI پکیج TO-247

Specification

Type Designator: FGW35N60HC
Type: IGBT
Marking Code: 35G60HC
Type of IGBT Channel: N-Channel
Maximum Power Dissipation (Pc), W: 230
Maximum Collector-Emitter Voltage |Vce|, V: 600
Maximum Gate-Emitter Voltage |Vge|, V: 20
Maximum Collector Current |Ic| @25℃, A: 35
Collector-Emitter saturation Voltage |VCE(sat)|, typ, V: 1.5
Maximum Junction Temperature (Tj), ℃: 175
Rise Time (tr), typ, nS: 52
Collector Capacity (Cc), typ, pF: 140
