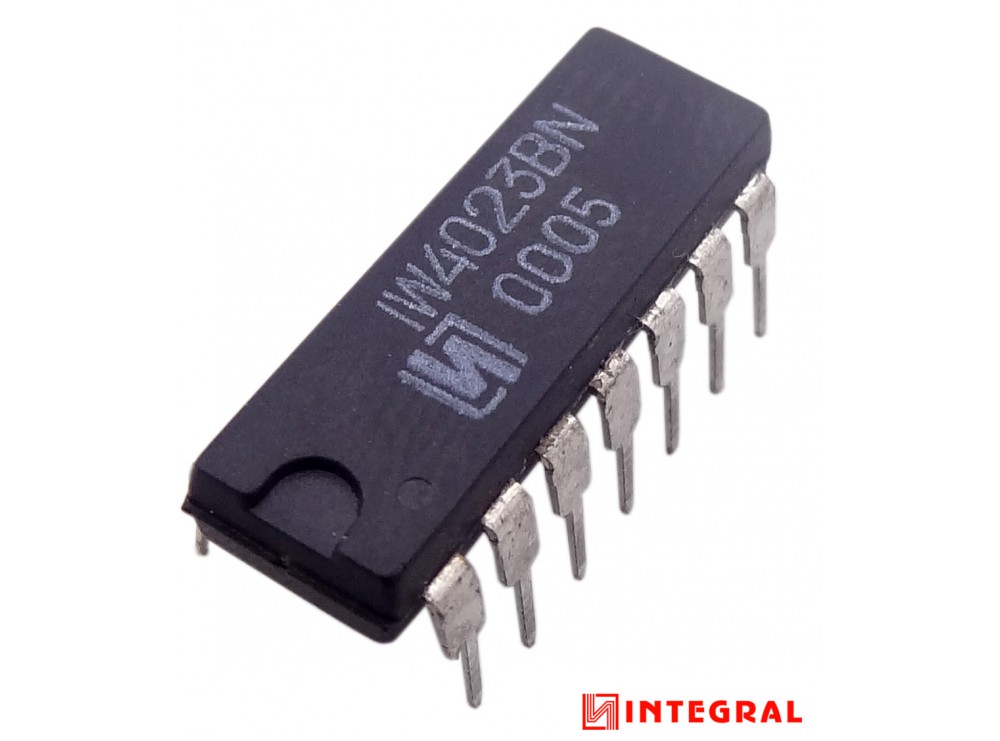

مجموعه 11 عددی تراشه CD4023BN گیت NAND پکیج DIP مارک INTEGRAL

Specification

Logic Function: NAND
Number of Gates: 3 Gate
Number of Input Lines: 3 Input
Number of Output Lines: 1 Output
High Level Output Current: – 1.5 mA
Low Level Output Current: 1.5 mA
Propagation Delay Time: 60 ns
Supply Voltage – Max: 18 V
Supply Voltage – Min: 3 V
Package / Case: PDIP-14
Function: Triple 3-Input
Operating Temperature Range: – 55 C to + 125 C
Quiescent Current: 20 nA
Logic Type: 3-Input NAND
Number of Bits: 3 bit
Operating Supply Current: 15 uA
