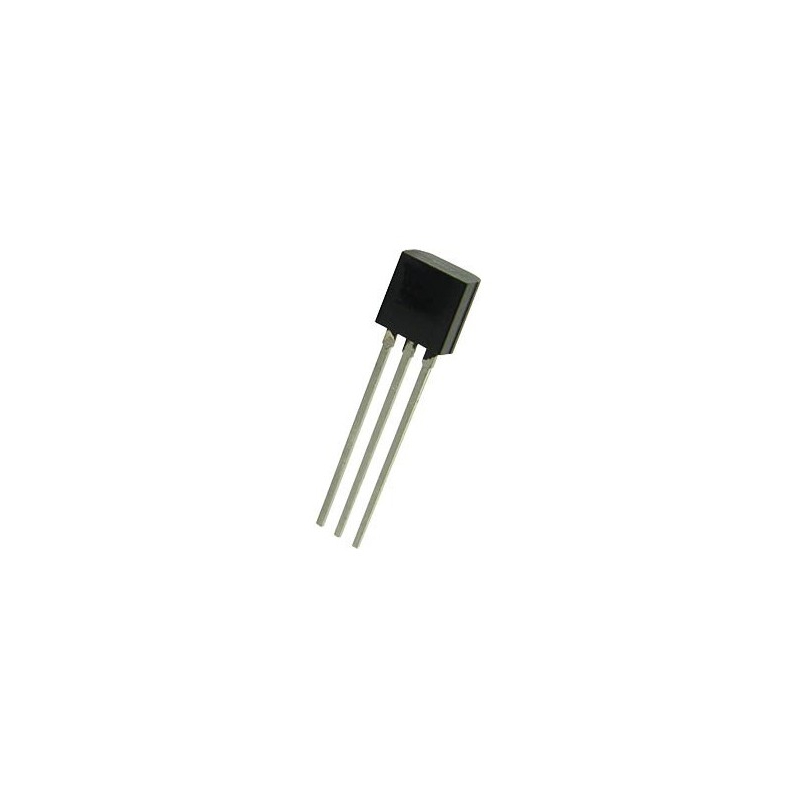

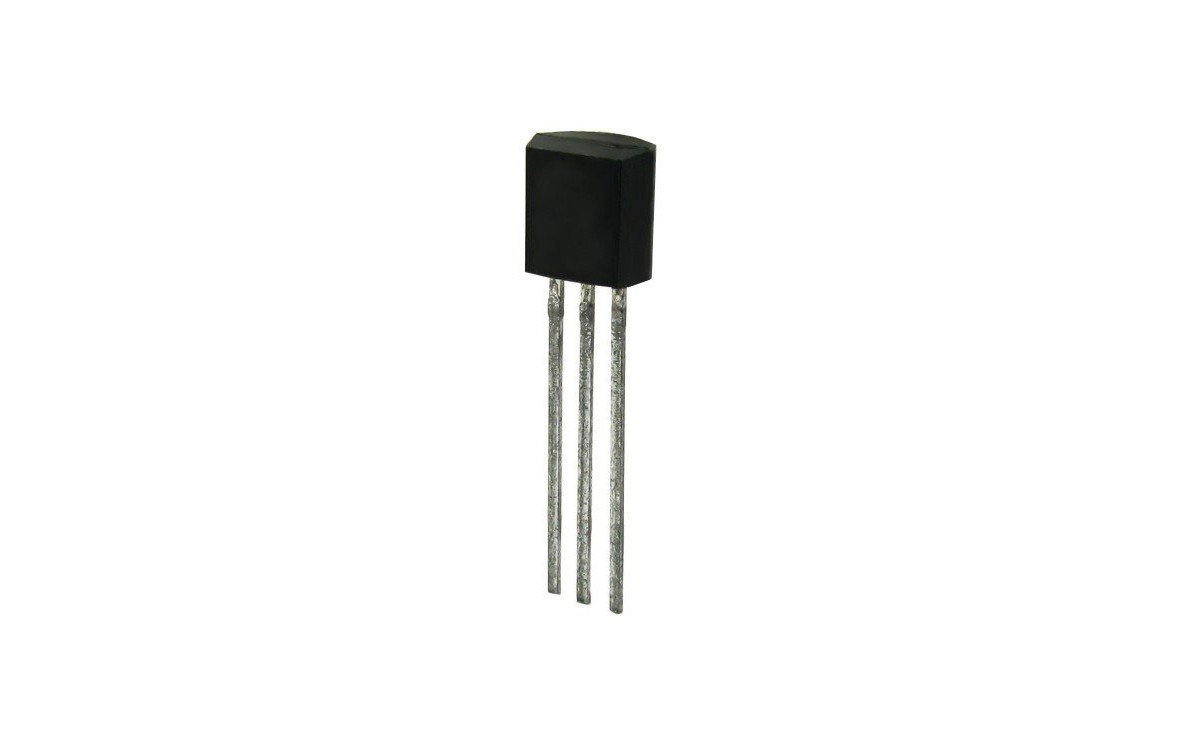

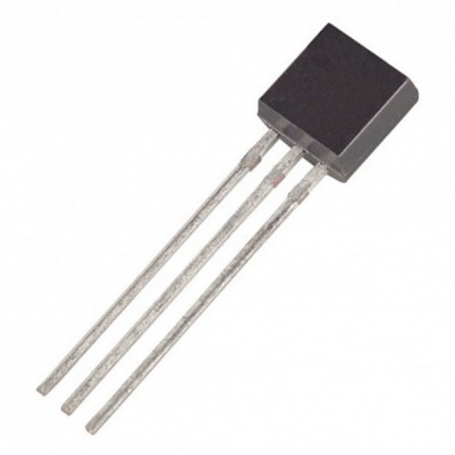

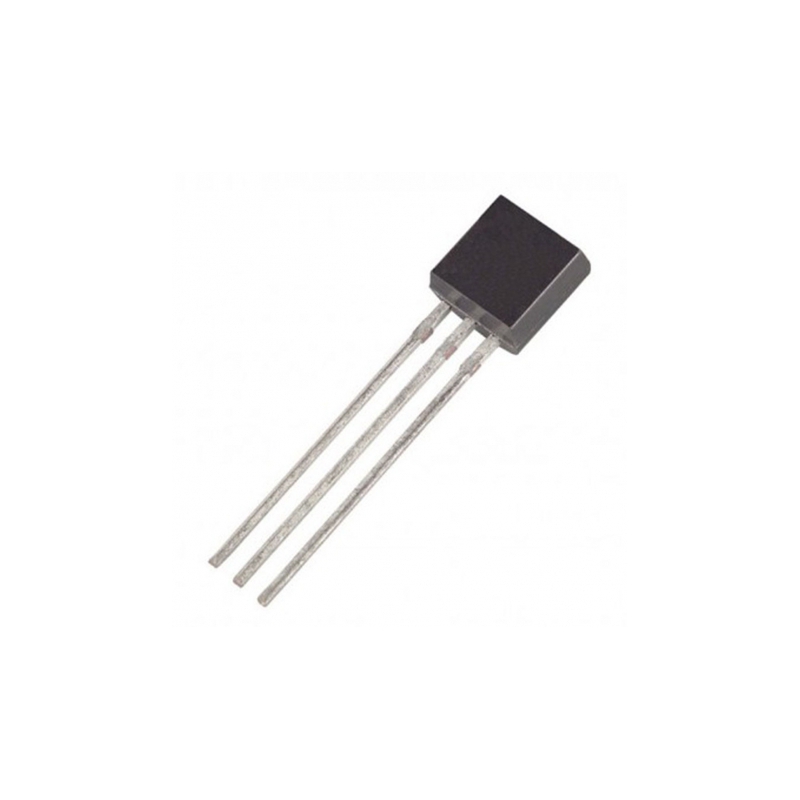

مجموعه 26 عددی رگولاتور 8+ ولت 78L08 پلاستیکی پکیج TO-92

Specification

Package / Case: TO-92
Number of Outputs: 1 Output
Polarity:Positive
Output Voltage: 8.3 V
Output Current: 100 mA
Output Type: Fixed
Input Voltage, Min: 10.5 V
Input Voltage, Max: 23 V
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 125 C
Load Regulation: 80 mV
Line Regulation: 175 mV
Quiescent Current: 6 mA
Series: L78
