مجموعه 2 عددی ترانزیستور قابلمه ای BUX48A نوع NPN پکیج TO-3

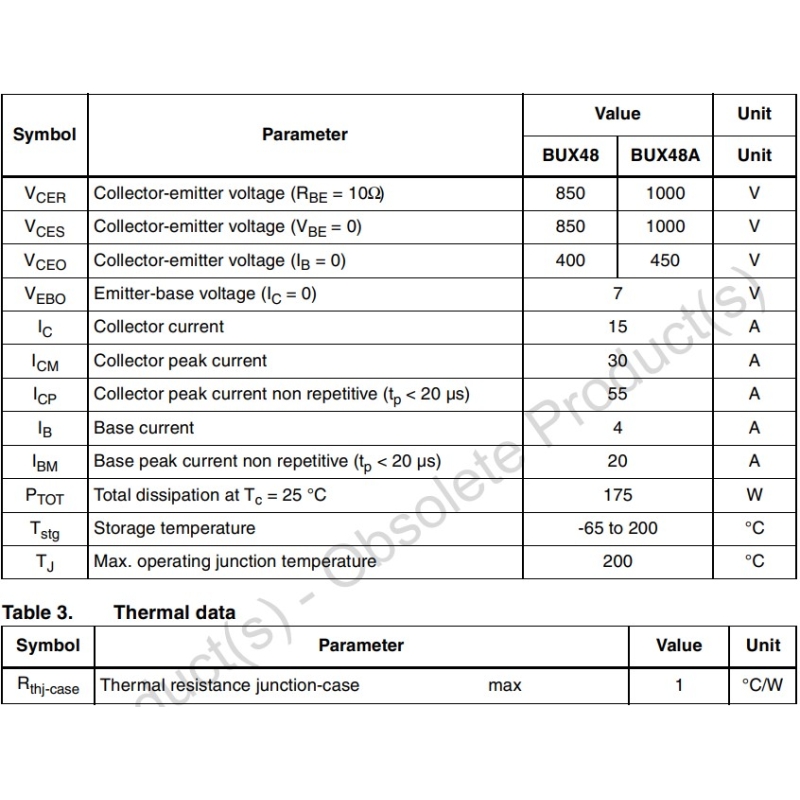

Specification

Type Designator: BUX48A
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 175 W
Maximum Collector-Base Voltage |Vcb|: 1000 V
Maximum Collector-Emitter Voltage |Vce|: 450 V
Maximum Emitter-Base Voltage |Veb|: 7 V
Maximum Collector Current |Ic max|: 15 A
Max. Operating Junction Temperature (Tj): 200 °C
Forward Current Transfer Ratio (hFE), MIN: 30
