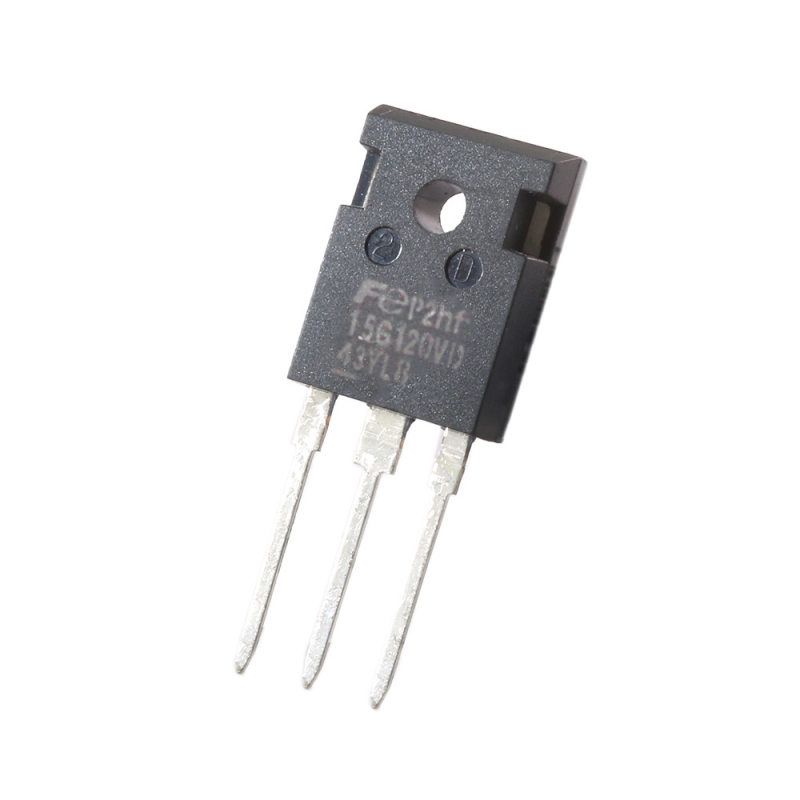

ترانزیستور FGW15N120VD IGBT ژاپنی مارک FUJI پکیج TO-247

Specification

Type Designator: FGW15N120VD
Type: IGBT
Marking Code: 15G120VD
Type of IGBT Channel: N-Channel
Maximum Power Dissipation (Pc), W: 155
Maximum Collector-Emitter Voltage |Vce|, V: 1200
Maximum Gate-Emitter Voltage |Vge|, V: 20
Maximum Collector Current |Ic| @25℃, A: 15
Collector-Emitter saturation Voltage |VCE(sat)|, typ, V: 1.85
Maximum Junction Temperature (Tj), ℃: 175
Rise Time (tr), typ, nS: 20
Collector Capacity (Cc), typ, pF: 58
