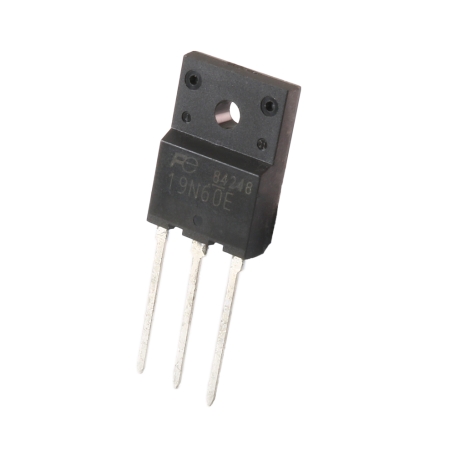

مجموعه 3 عددی ماسفت قدرت FMR19N60E نوع N-Channel ژاپنی مارک FUJI پکیج TO-3PF

Specification

Type Designator: FMR19N60E
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 150 W
Maximum Drain-Source Voltage |Vds|: 600 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 3.5 V
Maximum Drain Current |Id|: 19 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 105 nC
Rise Time (tr): 13 nS
Drain-Source Capacitance (Cd): 310 pF
Maximum Drain-Source On-State Resistance (Rds): 0.365 Ohm
