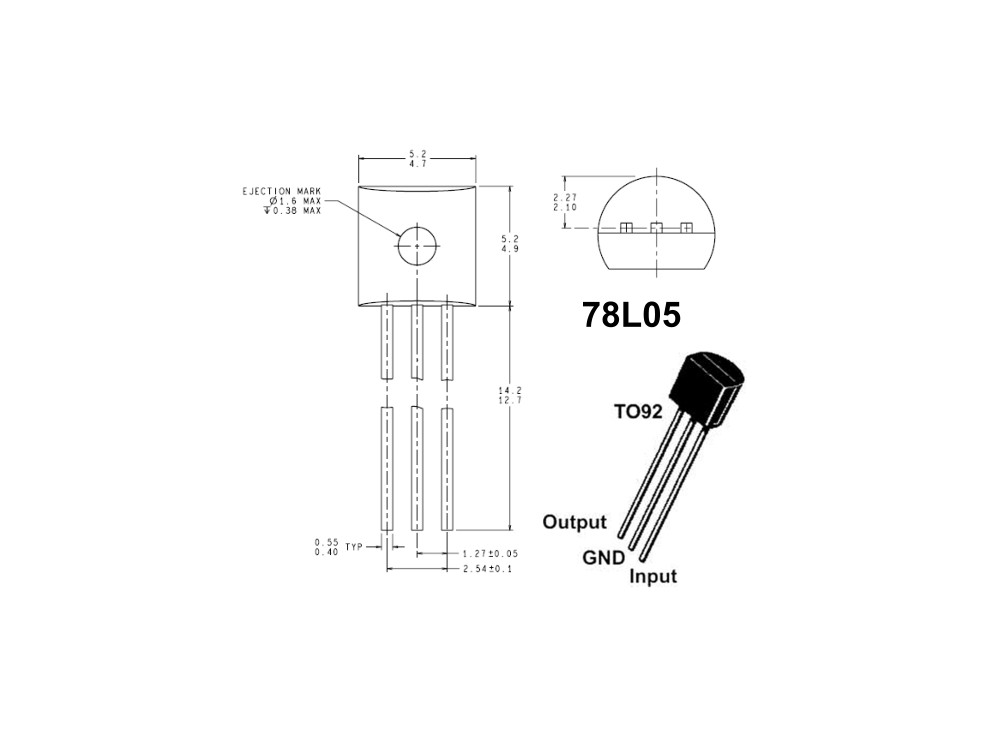

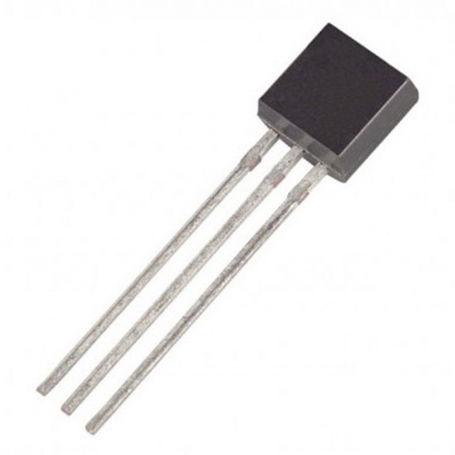

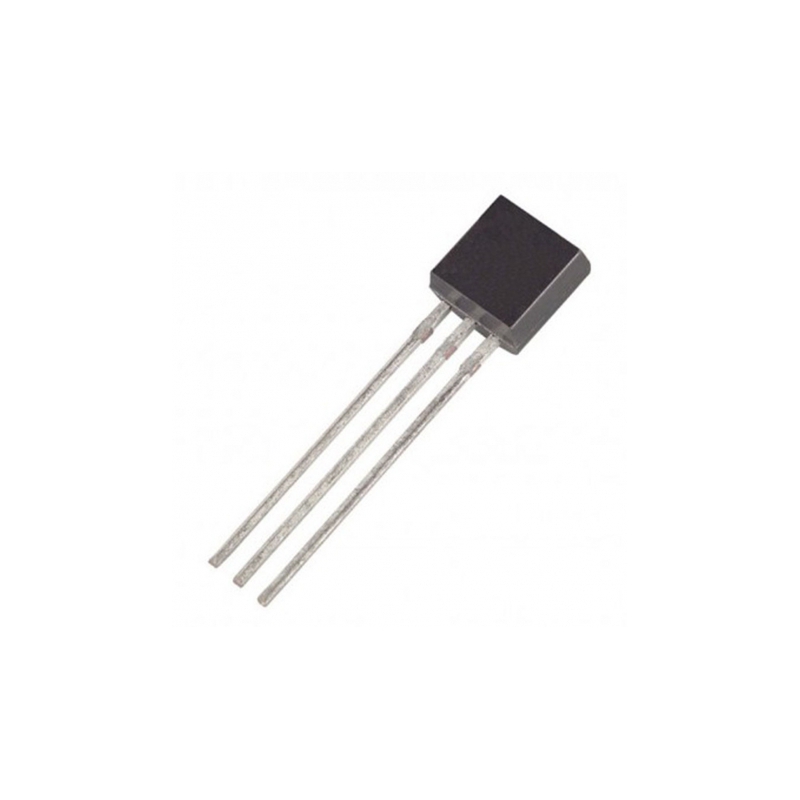

مجموعه 30 عددی رگولاتور 5+ ولت 78L05 پلاستیکی پکیج TO-92

Specification

Output Voltage: 5 V
.Line Regulation: 18 mV
Load Regulation: 20 mV
Quiescent Current: 3 mA
Quiescent Current Change: 1 mA
Output Noise Voltage: 40 uV
Ripple Rejection: 52 dB
Peak Output Current: 140 mA
Average Output Voltage Tempco: -0.65 mV/C
Minimum Value of Input Voltage Required to Maintain Line Regulation: 6.7 V
