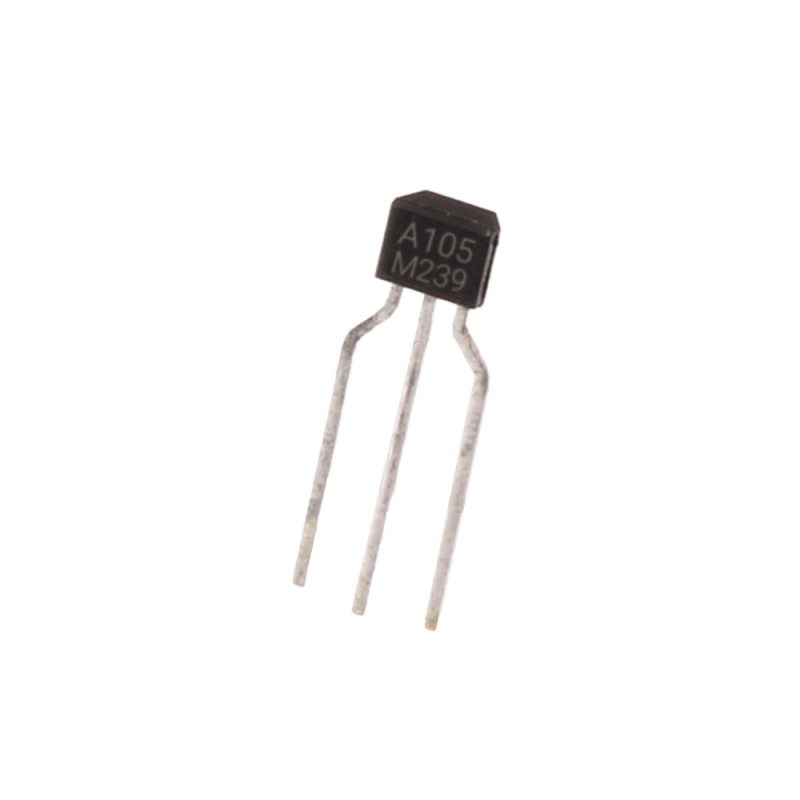

مجموعه 34 عددی ترانزیستور KRA105 نوع PNP کره ای مارک KEC پکیج TO-92

Specification

Type Designator: KRA105
Material of Transistor: Si
Polarity: Pre-Biased-PNP
Built in Bias Resistor R1 = 2.2 kOhm
Built in Bias Resistor R2 = 47 kOhm
Typical Resistor Ratio R1/R2 = 0.047
Maximum Collector Power Dissipation (Pc): 0.625 W
Maximum Collector-Emitter Voltage |Vce|: 50 V
Maximum Collector Current |Ic max|: 0.1 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 200 MHz
Forward Current Transfer Ratio (hFE), MIN: 80
Noise Figure, dB: –
