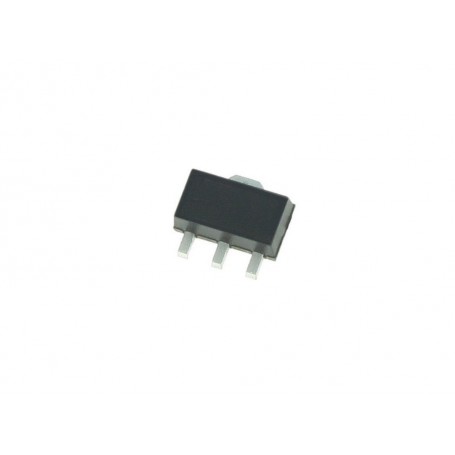

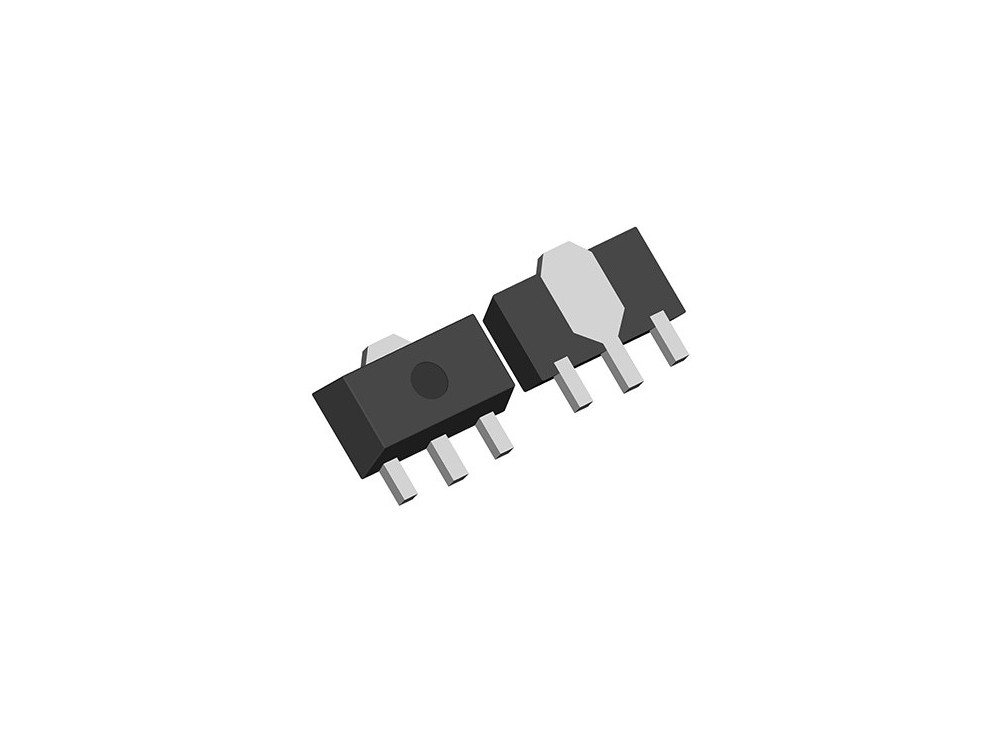

مجموعه 29 عددی ترانزیستور KTD1624 نوع NPN پکیج SOT-89

Specification

   Type Designator: KTD1624
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 1 W
Maximum Collector-Base Voltage |Vcb|: 60 V
Maximum Collector-Emitter Voltage |Vce|: 50 V
Maximum Emitter-Base Voltage |Veb|: 6 V
Maximum Collector Current |Ic max|: 3 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 150 MHz
Collector Capacitance (Cc): 25 pF
Forward Current Transfer Ratio (hFE), MIN: 100
