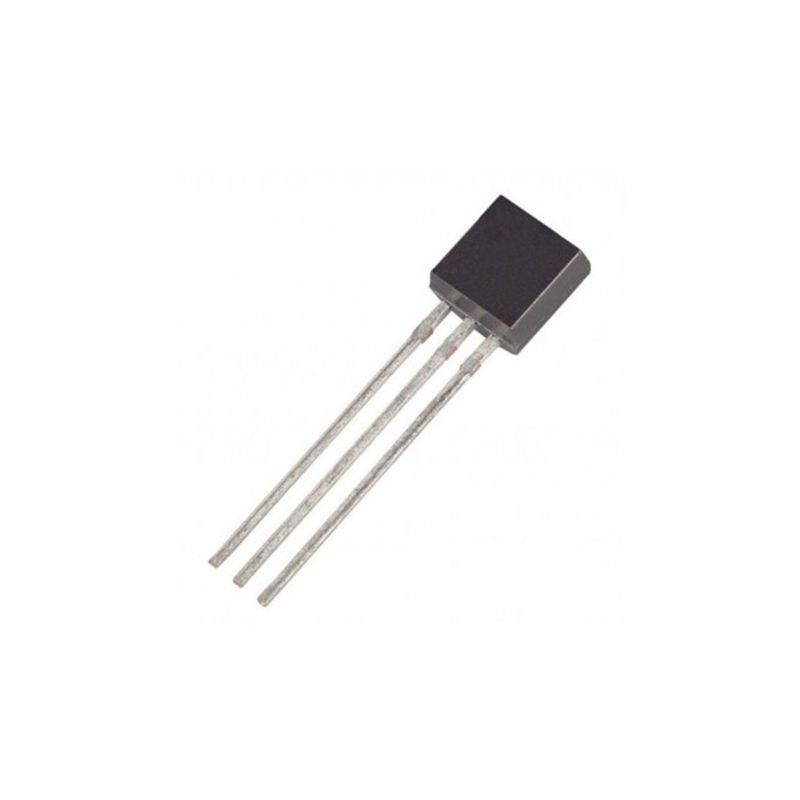

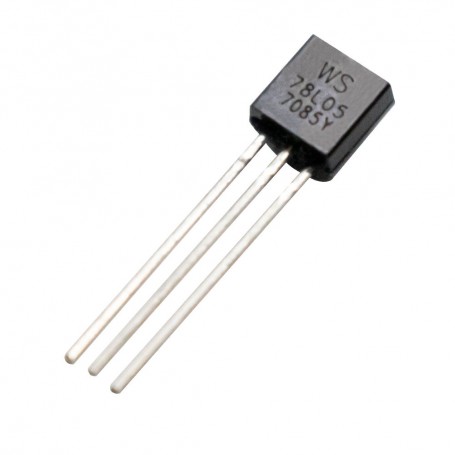

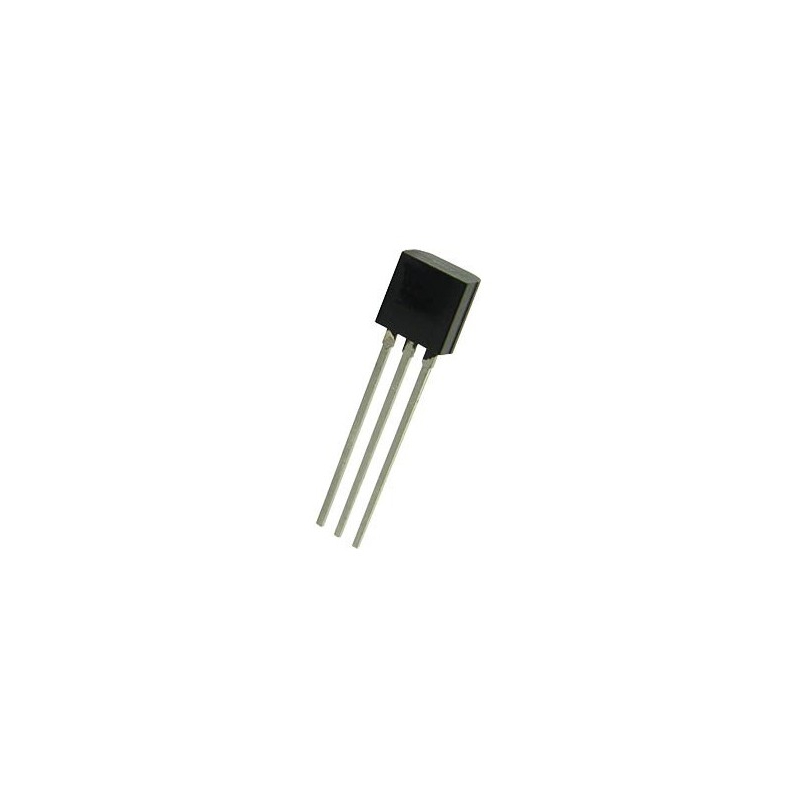

مجموعه 30 عددی رگولاتور 5+ ولت WS78L05 پلاستیکی پکیج TO-92

توجه: این رگولاتور دارای ترکیب پایه های متفاوتی است و به عکس پایه ها قبل از خرید توجه شود.

Introduction

This series of fixed-voltage integrated-circuit voltage regulators is designed for a wide range of applications. These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation.

In addition, they can be used with power-pass elements to make high-current voltage regulators.

One of these regulators can deliver up to 100 mA of output current. The internal limiting and thermal-shutdown features of these regulators make them essentially immune to overload. When used as a replacement for a zener diode-resistor combination, an effective improvement in output impedance can be obtained, together with lower bias current.

Specification

3-Terminal Regulators
Output Current up to 50 mA
No External Components
Internal Thermal-Overload Protection
Internal Short-Circuit Current Limiting
Provided Pb-Free packages from the end of 2004
