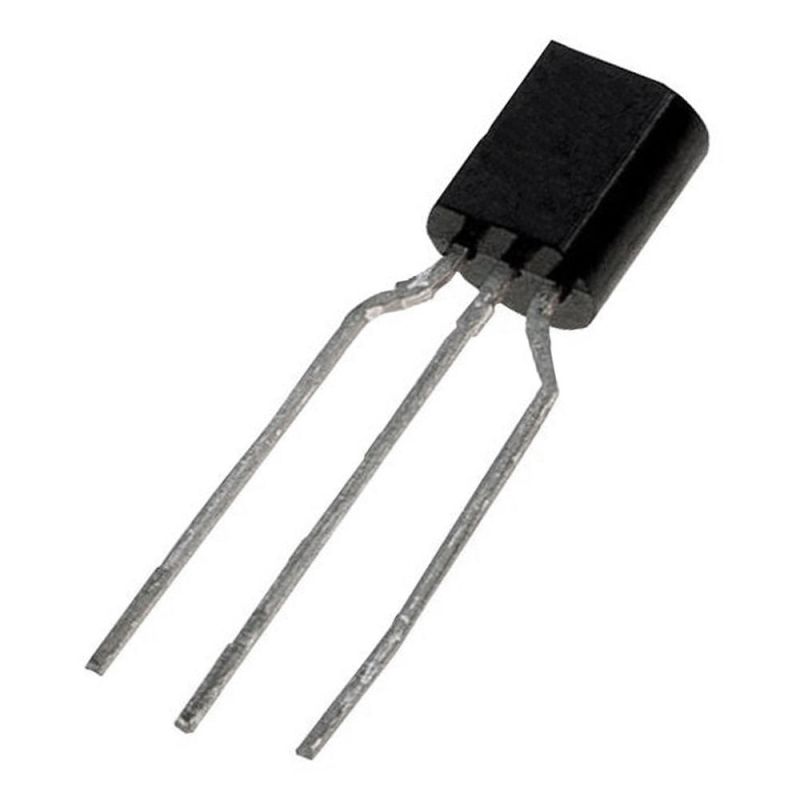

مجموعه 36 عددی ترانزیستور KSR1010 نوع NPN پکیج TO-92

Specification

Type Designator: KSR1010
Material of Transistor: Si
Polarity: Pre-Biased-NPN
Built in Bias Resistor R1 = 10 kOhm
Maximum Collector Power Dissipation (Pc): 0.3 W
Maximum Collector-Base Voltage |Vcb|: 40 V
Maximum Collector-Emitter Voltage |Vce|: 40 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.1 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 250 MHz
Collector Capacitance (Cc): 3.7 pF
Forward Current Transfer Ratio (hFE), MIN: 100
