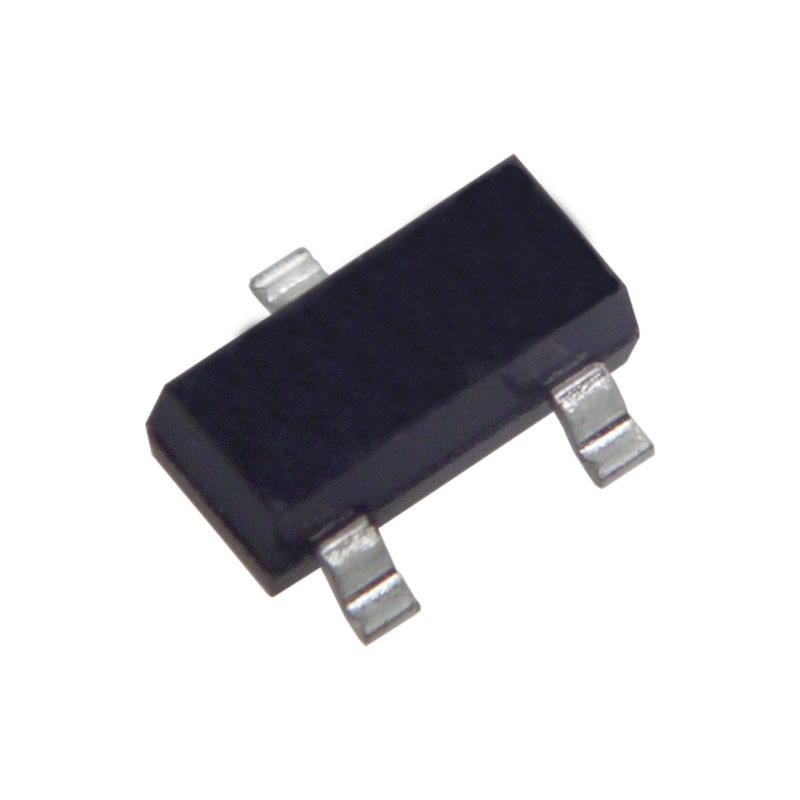

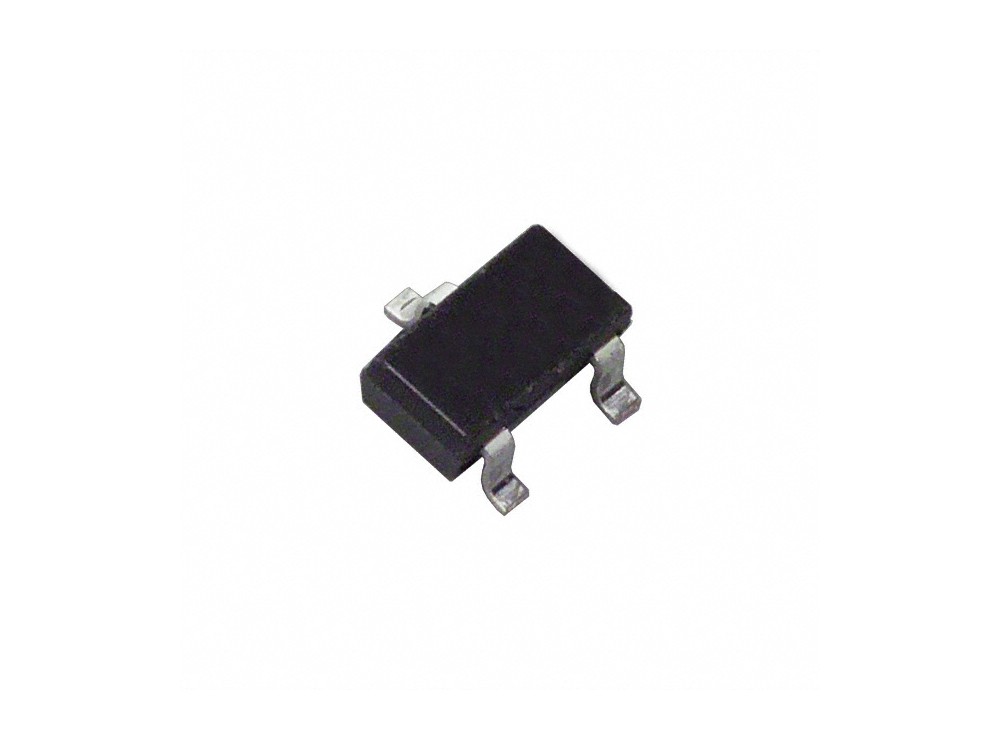

مجموعه 36 عددی ترانزیستور BC860 نوع PNP پکیج SOT-23

Specification

Type Designator: BC860
SMD Transistor Code: 4H_4Hp_4HW_CEC
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 0.2 W
Maximum Collector-Base Voltage |Vcb|: 50 V
Maximum Collector-Emitter Voltage |Vce|: 45 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.1 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 150 MHz
Collector Capacitance (Cc): 6 pF
Forward Current Transfer Ratio (hFE), MIN: 125
