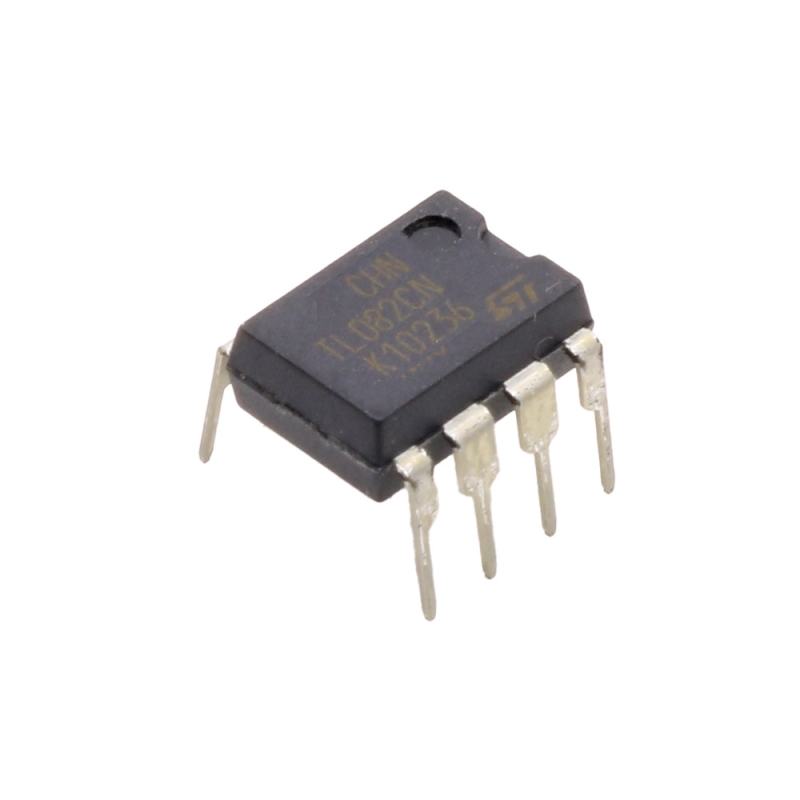

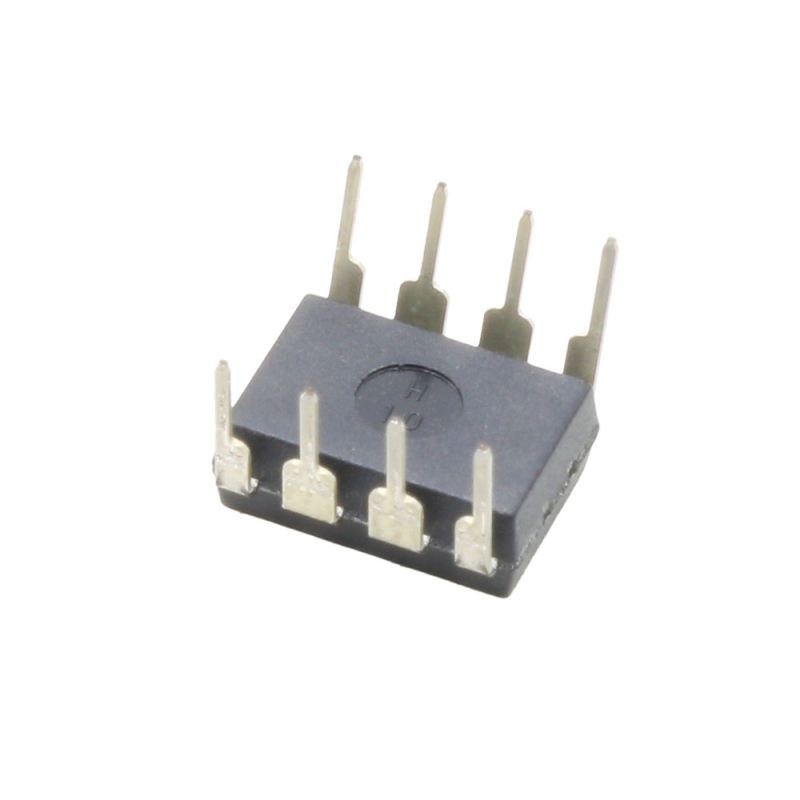

مجموعه 4 عددی تراشه آپ امپ دوبل TL082CN JFET مارک ST پکیج DIP

Specification

Manufacturer: STMicroelectronics
Product Category: Operational Amplifiers – Op Amps
Number of Channels: 2 Channel
GBP – Gain Bandwidth Product: 4 MHz
SR – Slew Rate: 16 V/us
Vos – Input Offset Voltage: 10 mV
Ib – Input Bias Current: 400 pA
Supply Voltage – Max: 36 V, +/- 18 V
Supply Voltage – Min: 6 V, +/- 3 V
Operating Supply Current: 2.5 mA
Output Current per Channel: 40 mA
CMRR – Common Mode Rejection Ratio: 70 dB
en – Input Voltage Noise Density: 15 nV/sqrt Hz
Package/Case: PDIP-8
Shutdown: No Shutdown
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 70 C
Series: TL082
Amplifier Type: General Purpose Amplifier
Brand: STMicroelectronics
Dual Supply Voltage: +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
Maximum Dual Supply Voltage: +/- 18 V
Minimum Dual Supply Voltage: +/- 3 V
Operating Supply Voltage: 6 V to 36 V, +/- 3 V to +/- 18 V
Pd – Power Dissipation: 680 mW
Product: Operational Amplifiers
Product Type: Op Amps – Operational Amplifiers
Subcategory: Amplifier ICs
Technology: BiFET
