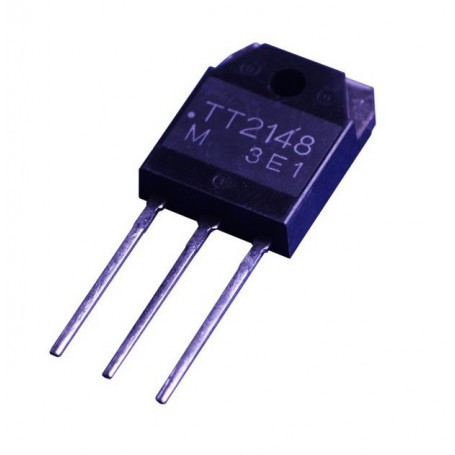

ترانزیستور TT2148 نوع NPN پکیج TO-3PB

Specification

Type Designator: TT2148
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 80 W
Maximum Collector-Base Voltage |Vcb|: 500 V
Maximum Collector-Emitter Voltage |Vce|: 400 V
Maximum Emitter-Base Voltage |Veb|: 7 V
Maximum Collector Current |Ic max|: 12 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 20 MHz
Collector Capacitance (Cc): 120 pF
Forward Current Transfer Ratio (hFE), MIN: 20
Noise Figure, dB: –

Features

• High breakdown voltage and high reliability.
• Fast switching speed.
• Wide ASO.
• Adoption of MBIT process.
