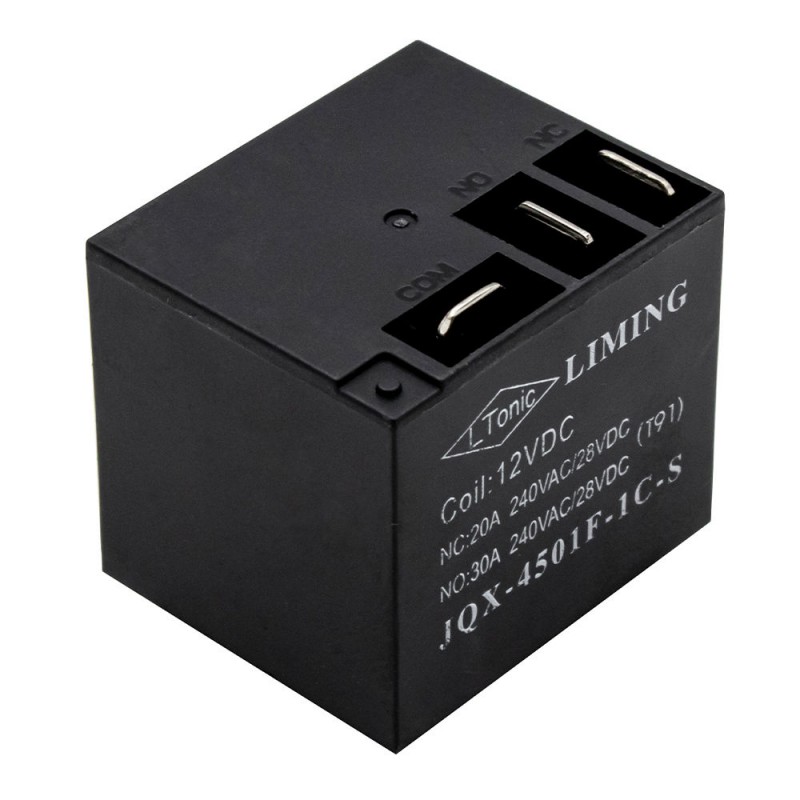

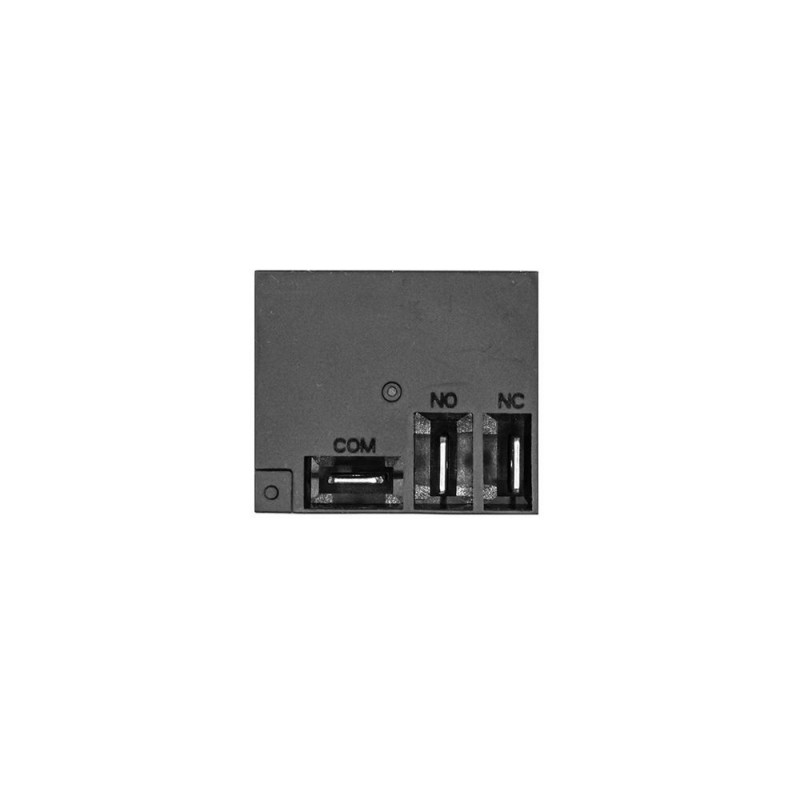

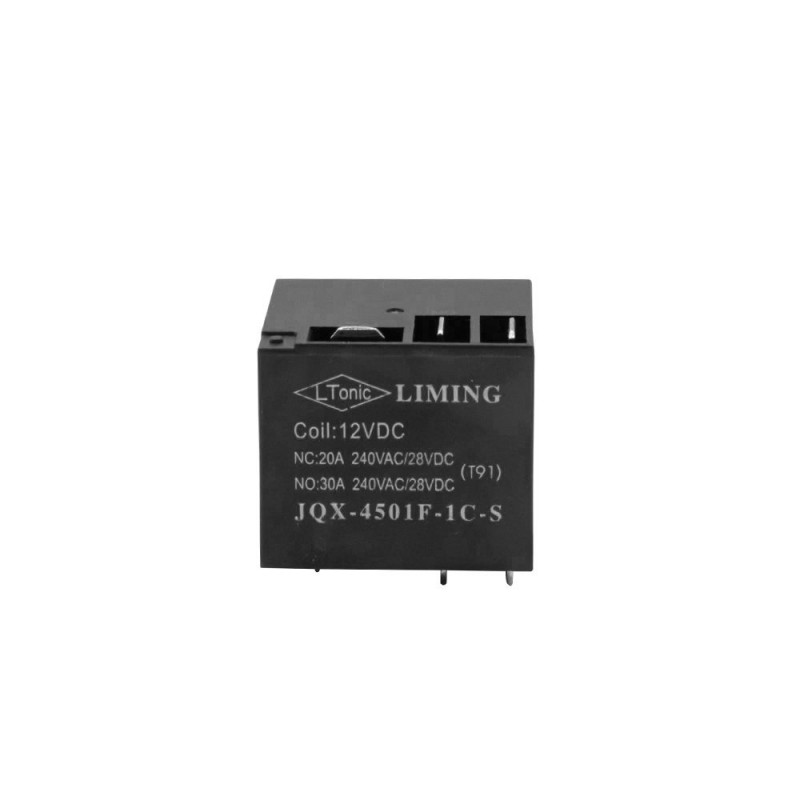

مجموعه 3 عددی رله فیش خور – کولری 12 ولت 30 آمپر T91 مارک LIMING کد JQX-4501F-1C-S

 Specification

Manufacturer: LTonic
Series: Liming
Pin Arrangement: T91
Model: JQX-4501F
Coil Voltage: 12VDC
Coil Resistance: 650ohm
Contact Rating: NC: 20A 240VAC/28VDC
NO: 30A 240VAC/28VDC
electrical endurance of contacts – 100,000 times
dielectric strength between open contacts – 1000 V rms / per 1 min
dielectric strength between coil and contacts – 1500 V rms / per 1 min
operating temperature – from -45°C to + 70°C

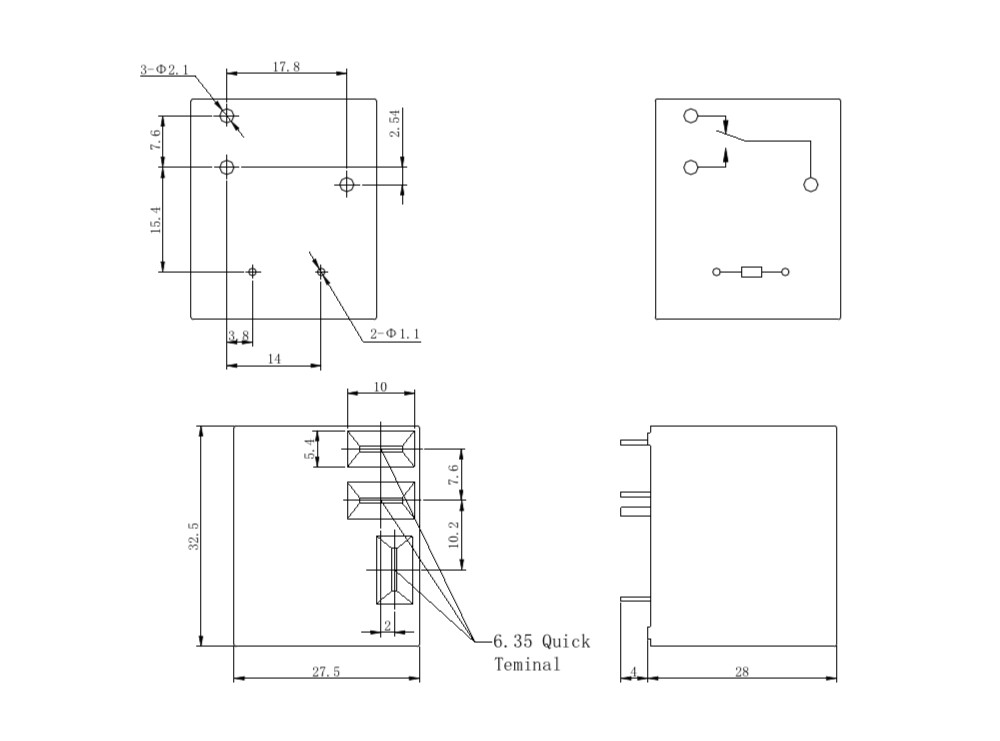

dimensions – 32 x 27 x 28 mm
