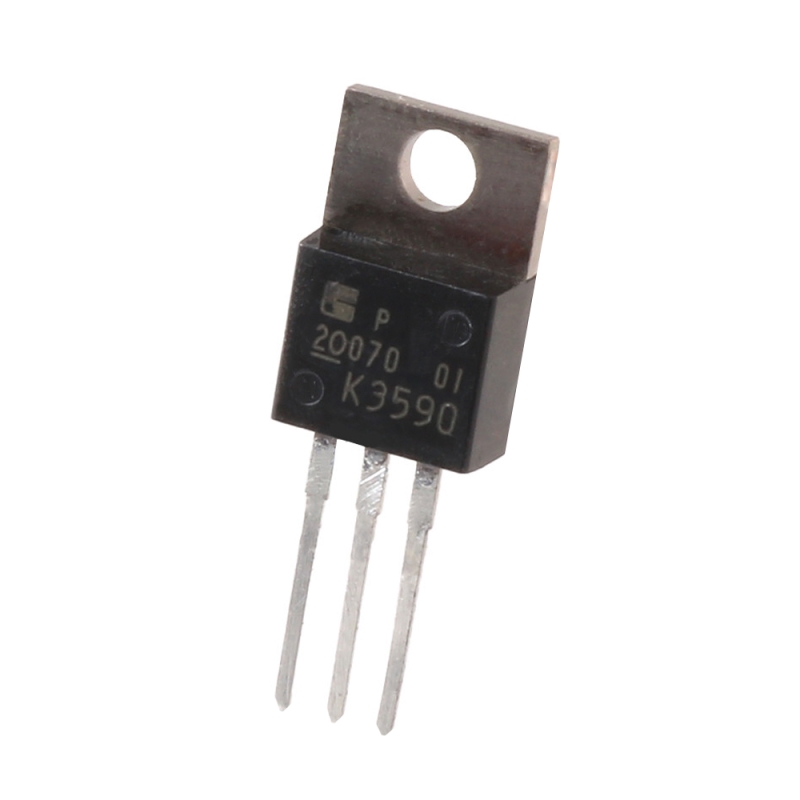

مجموعه 3 عددی ماسفت قدرت 2SK3590 نوع N-Channel ژاپنی مارک FUJI پکیج TO-220

Specification

Type Designator: 2SK3590
Marking Code: K3590
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 270 W
Maximum Drain-Source Voltage |Vds|: 150 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 5 V
Maximum Drain Current |Id|: 57 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 78 nC
Rise Time (tr): 39 nS
Maximum Drain-Source On-State Resistance (Rds): 41 mOhm
Package: TO-220
