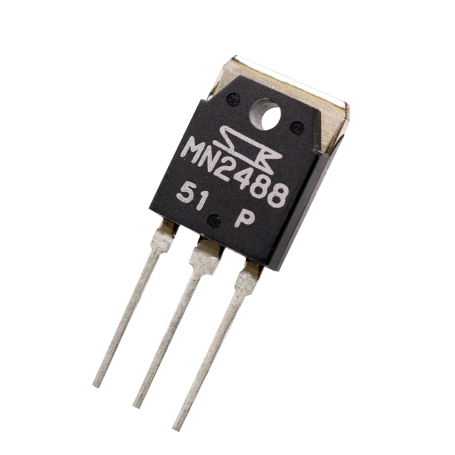

مجموعه 4 عددی ترانزیستور قدرت MN2488 نوع NPN تایوانی مارک SANKEN پکیج TO-3P

Specification

Type Designator: MN2488
Material of Transistor: Si
Polarity: NPN Darlington
Maximum Collector Power Dissipation (Pc): 150 W
Maximum Collector-Base Voltage |Vcb|: 160 V
Maximum Collector-Emitter Voltage |Vce|: 150 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 10 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 55 MHz
Collector Capacitance (Cc): 95 pF
Forward Current Transfer Ratio (hFE), MIN: 5000
Noise Figure, dB: –
