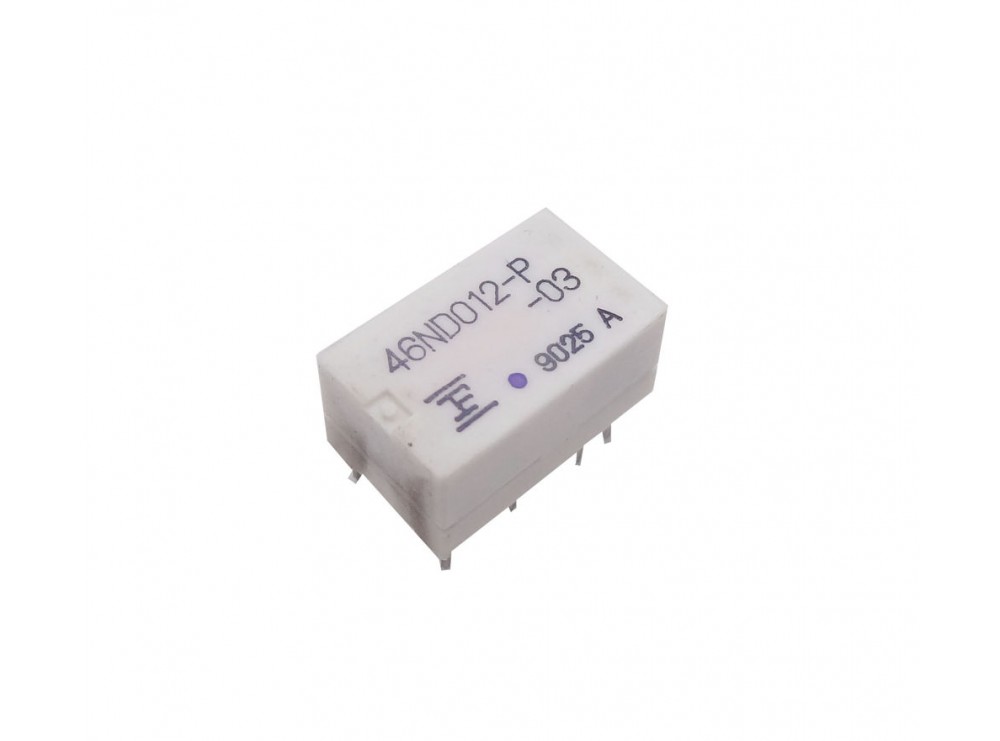

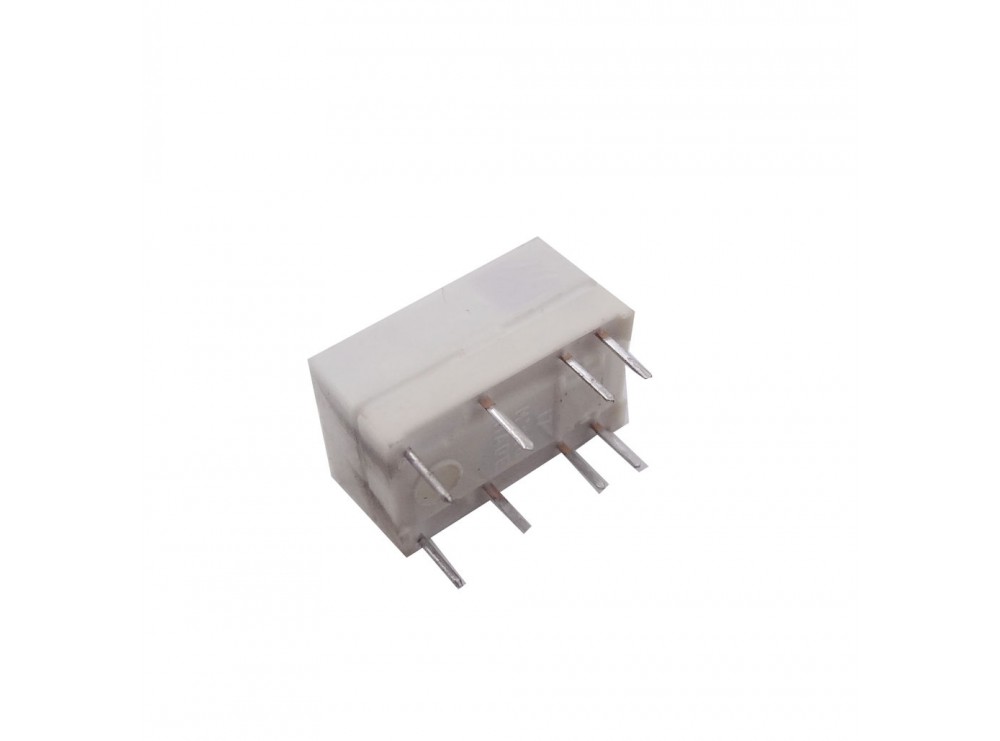

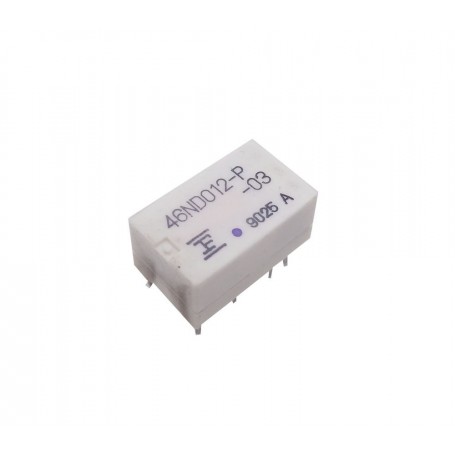

مجموعه 4 عددی رله 12V مینیاتوری 8 پایه ژاپنی مارک FUJITSU کد 46ND012

– Miniature size
About 50% smaller in volume compared with the FBR240 series used mainly in communication equipment.
– High surge voltage
2,500 V minimum of surge strength (Bellcore standard), and 1,500 VAC minimum of dielectric strength between coil and contact (-15, -16 type).
– Low power consumption
85 mW of operate power (150 mW of nominal power con- sumption) by built-in permanent magnet.

Rated load: 0.5 A at 120 VAC, 1 A at 30 VDC
Max. switching voltage: 125 V
Max. switching current: 1 A
Max. switching capacity: 30 W
