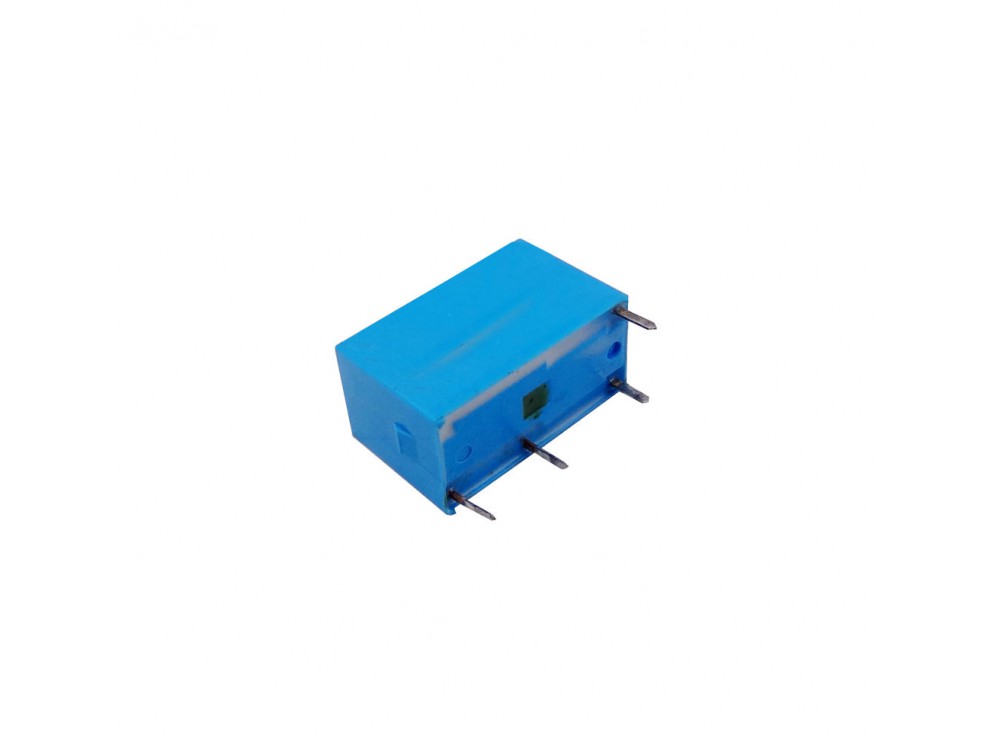

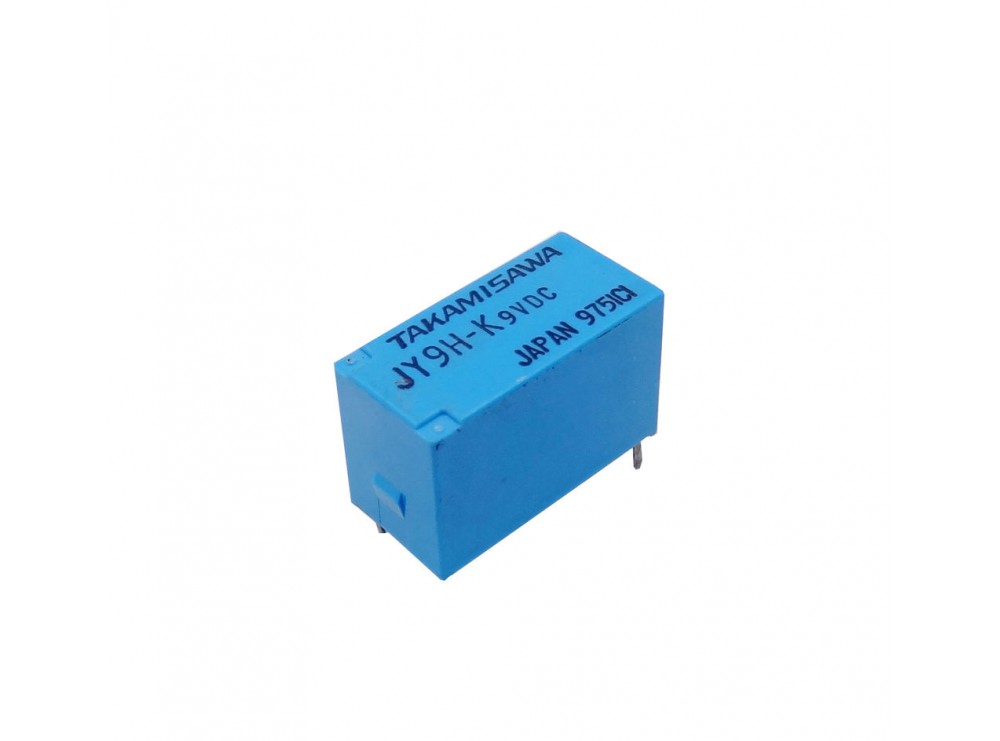

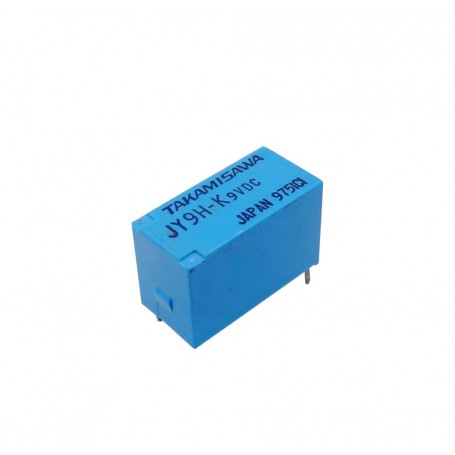

مجموعه 5 عددی رله 9V مینیاتوری 4 پایه ژاپنی مارک TAKAMISAWA کد JY9H-K

Contact Material: Cadmium, Gold, Silver
Number of Pins:  4
Coil Current :22.22 mA
Coil Resistance :405 Ω
Coil Voltage (DC) : 9 V
Contact Current Rating : 5 A
Max Operating Temperature: 90 °C
Min Operating Temperature: -40 °C
Operate Time: 6 ms
Power Consumption: 200 mW
Resistance:  405 Ω
Termination: PC Pin
Throw Configuration :SPST
Voltage Rating (AC): 250 V
Depth: 9.8 mm
Length: 20 mm
