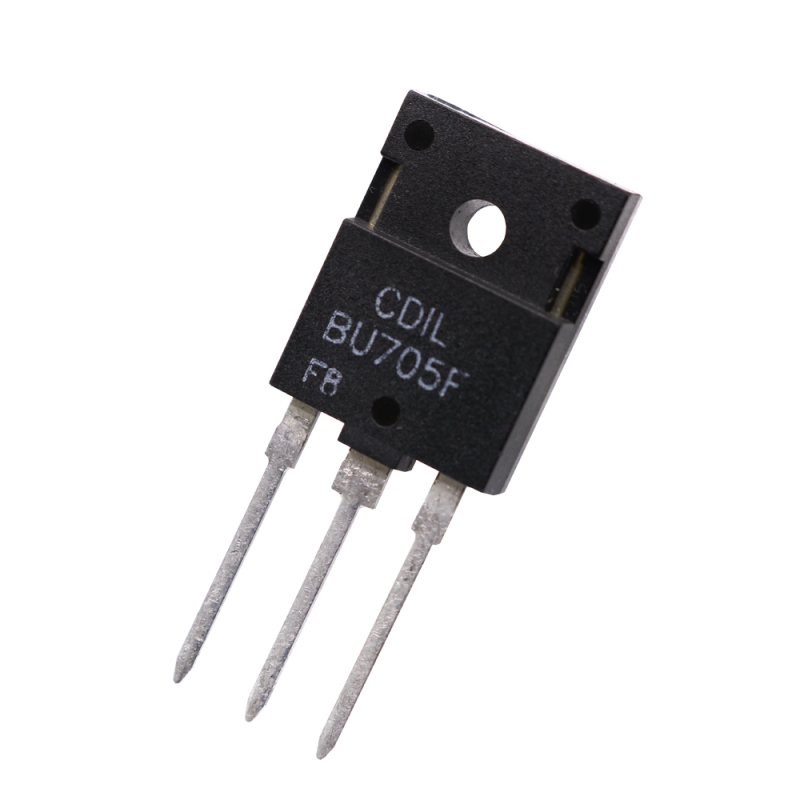

مجموعه 5 عددی ترانزیستور قدرت BU705F نوع NPN مارک CDIL پکیج TO-3P

Specification

Type Designator: BU705
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 78 W
Maximum Collector-Base Voltage |Vcb|: 1500 V
Maximum Collector-Emitter Voltage |Vce|: 700 V
Maximum Collector Current |Ic max|: 2.5 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 7.5 MHz
Collector Capacitance (Cc): 80 pF
Forward Current Transfer Ratio (hFE), MIN: 2.25
Noise Figure, dB: –
