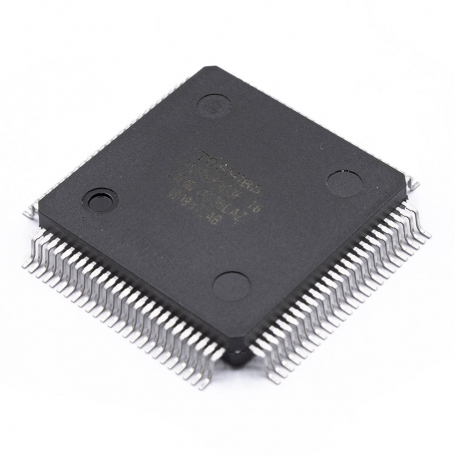

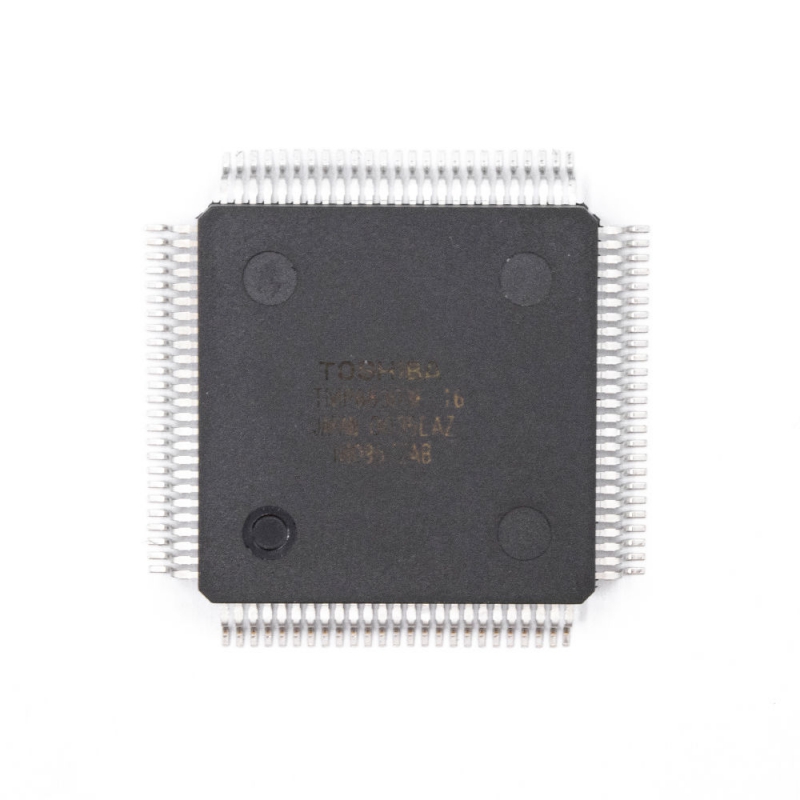

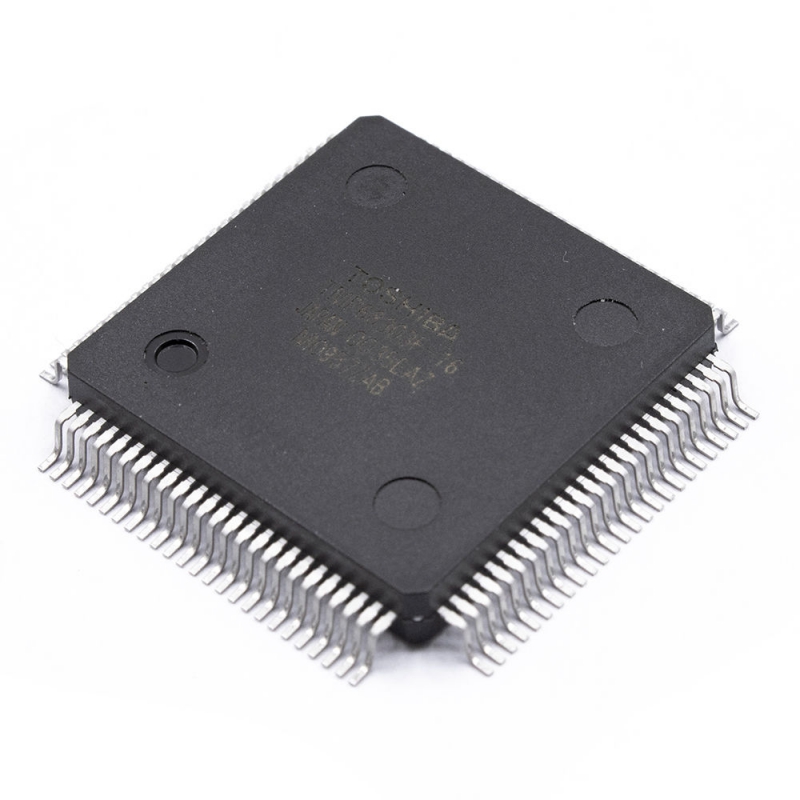

میکروکنترلر TMP68303f-16

Description
TMP68303 is a high-speed, high-function 16-bit microprocessor developed for applications in control devices. TMP68303 uses the 68HC000, the CMOS version of the 68000, as its core processor. It also includes peripheral circuits such as a serial interface, parallel interface, timer, interrupt controller, DMA controller, DRAM controller, stepping motor controller, and address decoder.
In addition, TMP68303 can directly use 68000 development environments and software resources.
Features
-Core processor 68HC000
-Minimum instruction execution time:240 ns(with 16.67MHz-system clock)
-17 32-bit registers
-16M-byte direct addressing
-56 powerful basic instructions
-14addressing modes
-2-channel asynchronous serial interface
-10-bit parallel I/O interface
-3-channel,16-bit timer/counter(with built-in watchdog timer)
-2-channel,8-bit timer/counter
-12-channel interrupt controller (3 external channels,9 internal channels)
-3-channel DMA controller(max.8MB/s)
-DRAM controller(RAS/CAS, multiplexed address output)2-channel stepping motor controller(4-phase output)
-2-channel chip-select signal output(CSO, CS1)
-Automatic wait insertion
-Bus monitor function
-Low power consumption(CMOS)
